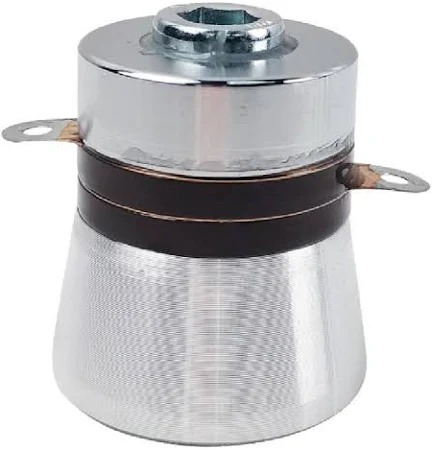

40KHz 60W Adjustable Ultrasonic Cleaning Transducer

40KHz 60W Adjustable Ultrasonic Cleaning Transducer

40KHz 60W Adjustable Ultrasonic Cleaning Transducer

The 40k Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. Medical ultrasonic transducers (ultrasonic probes) operate in much the same way, and typically contain an electrical energy storage element and a mechanical vibration system inside. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium. The process of receiving sound waves is exactly the opposite. External sound waves act on the vibrating surface of the transducer, causing the mechanical vibration system of the transducer to vibrate, causing an electric field in the energy storage element of the transducer or by some physical effect. The magnetic field changes accordingly, causing the electrical output of the transducer to produce a voltage and current corresponding to the acoustic signal.

DNA solutions, Nashik has various types of Ultrasonic Transducer. Check out our complete collection of Ultrasonic Transducer.

• Homogeneous sounding board.

• Widely used in ultrasonic cleaning, medical, beauty, and so on.

• Also supply ultrasonic power supply, with sweeping, adjustable power automotive and aerospace industry, mechanical industry, plating industry, etc.

• High performance: high mechanical Q-value, high conversion efficiency.

• Large amplitude, piezoelectric ceramic materials provide good heat resistance.

Specifications of 40KHz 60W Adjustable Ultrasonic Cleaning Transducer

• Frequency: 40KHz The transducer operates at 40,000 Hz, which provides a good balance between powerful cleaning action and gentleness. This frequency is suitable for cleaning delicate items like jewelry, electronics, and medical instruments.

• Power Output: 60W The transducer delivers 60 watts of ultrasonic power, providing sufficient energy for cleaning a variety of objects with moderate contamination.

• Adjustable Power: The power of the transducer can be adjusted, allowing the user to fine-tune the cleaning intensity depending on the sensitivity of the objects being cleaned.

• Material: Piezoelectric Ceramic Elements: The transducer typically contains high-quality piezoelectric ceramics that convert electrical energy into ultrasonic vibrations.

Package Includes

• 1 x 40KHz 60W Adjustable Ultrasonic Cleaning Transducer
