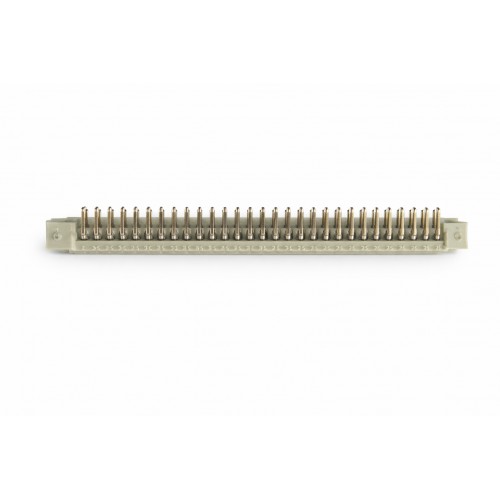

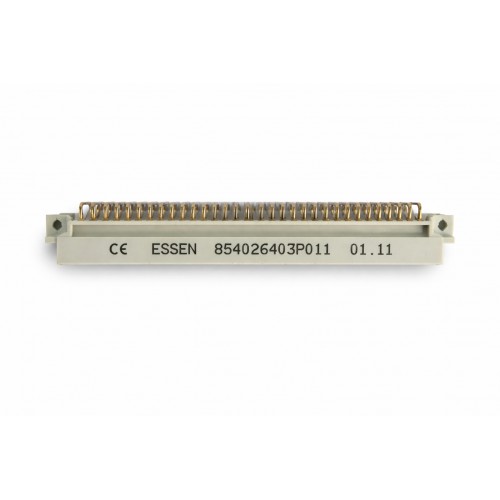

64 Pins Euro Connector 2X32 Pin Male

64 Pins Euro Connector 2X32 Pin Male

This 64-pin Euro connector features a 2×32 pin male configuration and is commonly used in industrial control systems, data acquisition modules, and Eurocard rack systems. It's designed for high-density signal transmission and compatibility with standard DIN 41612 or IEC 60603-2 connectors.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• 64 Pins Total (2 Rows of 32 Pins)

• Male (Plug) Style – Fits into female socket/receptacle connectors

• Pitch: Standard 2.54 mm or 2.5 mm, depending on series

• Contact Termination: Solder, press-fit, or wire-wrap (variant dependent)

• Current Rating: Typically 2–3 A per contact

Specifications of 64 Pins Euro Connector 2X32 Pin Male

• Total Contacts: 64 (2 rows × 32 pins)

• Connector Type: Eurocard (DIN 41612) Male

• Rows: 2 (Row A and B)

• Contact Plating: Gold or Tin (varies by model)

• Insulator Material: PBT or Thermoplastic UL94V-0

• Operating Voltage: 250V – 500V (based on type)

• Contact Resistance: < 20 mΩ

• Operating Temperature: -55°C to +125°C

Applications of 64 Pins Euro Connector 2X32 Pin Male

• Eurocard-based rack systems

• Industrial automation and control units

• Data acquisition and test equipment

• Embedded systems and backplane connections

• Military and aerospace equipment

• Telecommunications and instrumentation

Package Includes

      1 x 64 Pins Euro Connector 2X32 Pin Male
