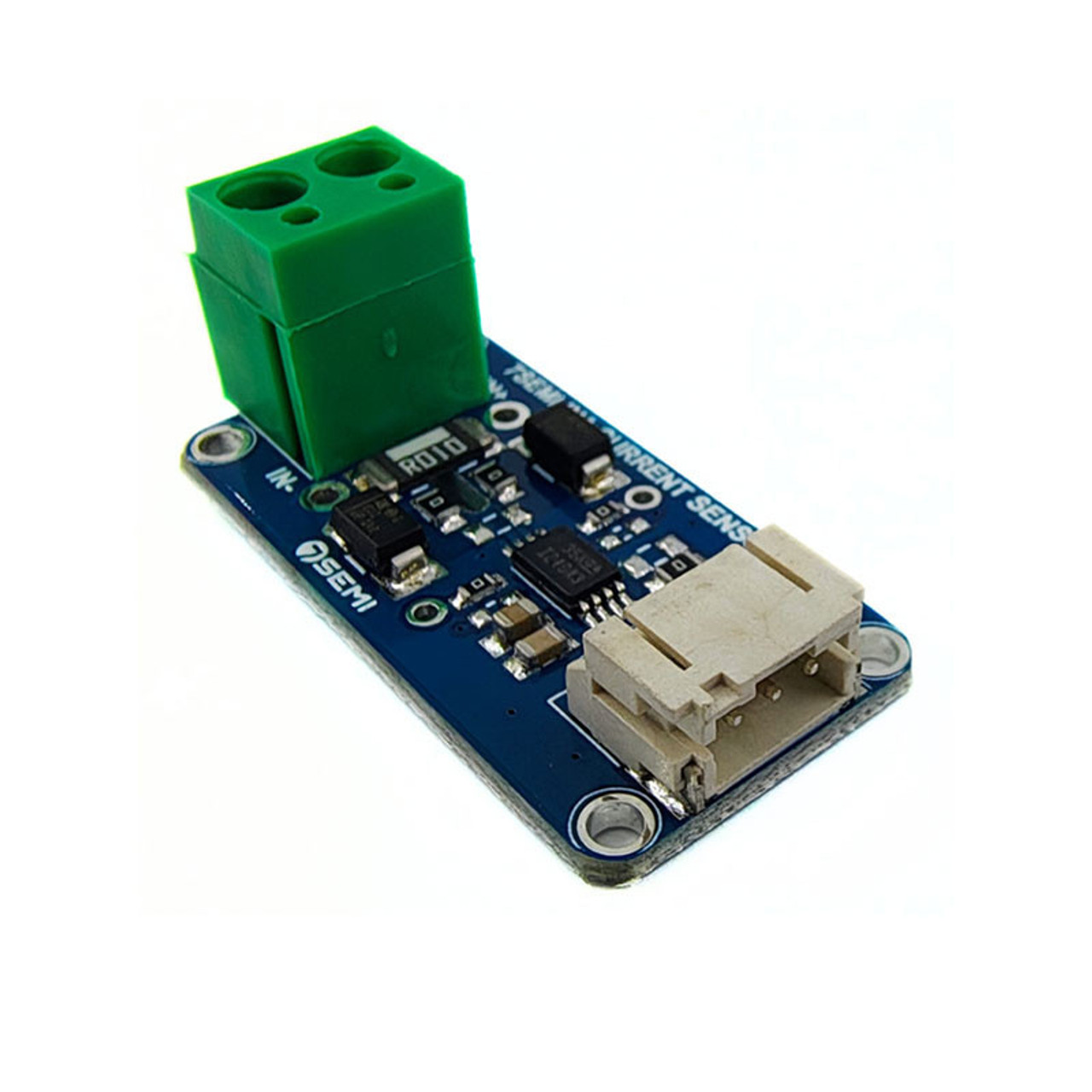

7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout 100V/V Gain

7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout 100V/V Gain

The 7Semi INA240 is a high-precision, bidirectional current sense amplifier breakout module designed to measure currents in high-side and low-side configurations. With a wide common-mode voltage range of 4 V to 80 V and a gain of 100 V/V, this module provides accurate current measurement in demanding applications. It offers enhanced PWM rejection, low offset voltage, and excellent linearity, making it ideal for motor control, battery monitoring, and power management systems. Its compact breakout form factor makes it easy to integrate into prototypes and embedded systems for current sensing tasks.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

Features of 7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout 100V/V Gain

• Wide common-mode voltage range: 4 V to 80 V

• High accuracy bidirectional current sensing

• Fixed gain of 100 V/V

• Enhanced PWM rejection for precise measurement

• Low offset voltage and drift

• Compact breakout module design

• RoHS compliant

Specifications of 7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout 100V/V Gain

• Common-mode voltage range: 4 V to 80 V

• Operating voltage: 2.7 V to 5.5 V

• Gain: 100 V/V

• Bandwidth: 400 kHz

• Offset voltage: ±25 µV typical

• Operating temperature range: –40°C to +125°C

Applications of 7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout 100V/V Gain

• Motor control and protection

• Battery monitoring systems

• Power management and distribution

• Overcurrent protection circuits

Package Includes

      1 x 7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout 100V/V Gain
