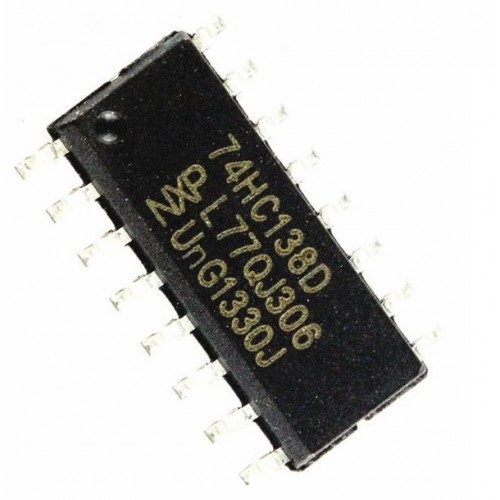

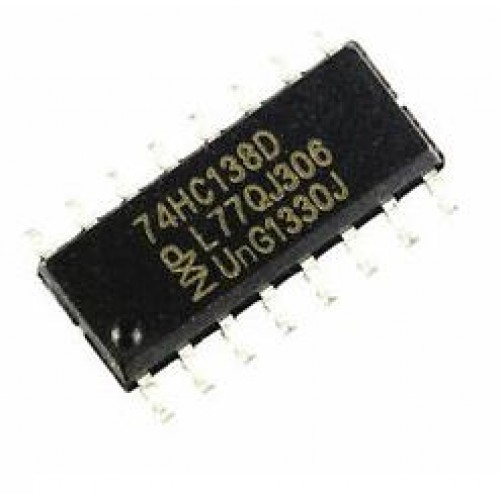

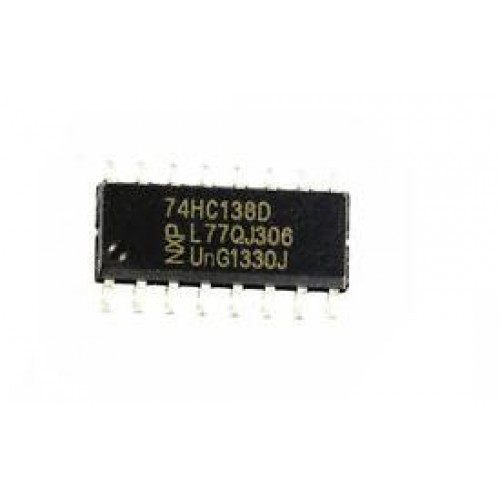

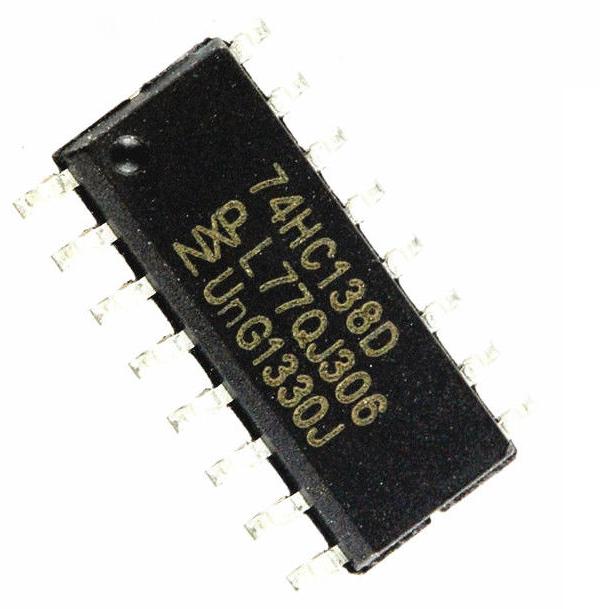

74HC138 SMD Demux IC

  • Stock: 11
  • SKU: 1831 | DAB704
  • Rs. 30.68 (inc GST)
    Rs.26.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

74HC138 SMD IC

3 TO 8 LINE DECODER DEMULTIPLEXER

The 74HC138 is a high speed CMOS device. The device accepts a three bit binary weighted address  on input pins A0, A1 and A2 and when enabled will produce one active low output with the reaming seven being high. There are two active LOW enable inputs E1 and E2, and one active HIGH enable input E3. The disabled device state results in all outputs being high. The enable state occurs with E1 and E2 asserted low and E3 asserted high. The multiple enable lines allow for the parallel expansion  of decoders to create 4-to-16 line versions with no additional parts and 5-to-32 versions with the addition of a single inverter.

Features Of 74HC138 IC

  • Wide Supply Voltage Range from 2.0 Volt to 6.0 Volt
  • Sinks or sources 8 mA at VCC = 4.5V
  • CMOS low power consumption
  • Schmitt Trigger Action at All Inputs
  • Inputs Accept up to 6.0V
  • ESD Protection Tested per JESD 22
  • Exceeds 200-V Machine Model (A115-A)
  • Exceeds 2000-V Human Body Model (A114-A)
  • Exceeds 1000-V Charged Device Model (C101C)
  • Latch-Up Exceeds 100mA per JESD 78D, Class II

Applications Of 74HC138 SMD IC

  • Memory chip select decoding
  • Demultiplexing
  • Single line peripheral control
  • Allow simple serial bit streams from a microcontroller to control as many peripheral lines as needed
