  • 74HC595 8-Bit Serial To Parallel Shift Register (SOP-16)

Product Images are shown for illustrative purposes only and may differ from actual product.

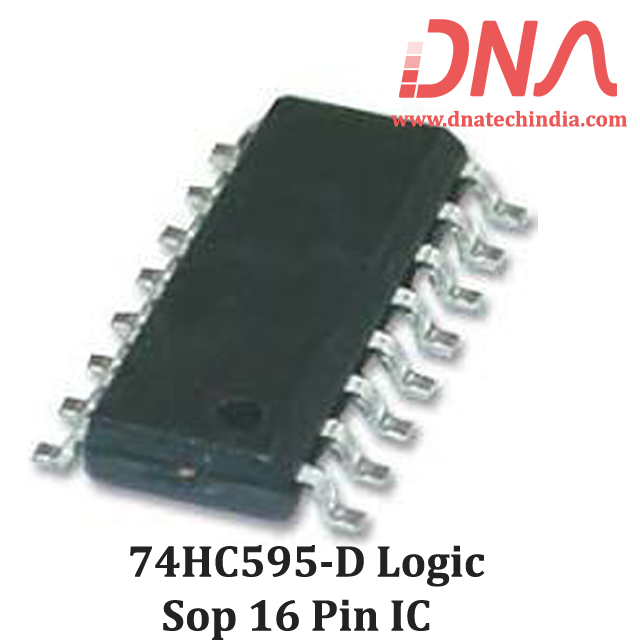

74HC595 8-Bit Serial To Parallel Shift Register (SOP-16)


Write a review | 0 reviews

  • Stock: 10
  • SKU: 2767 | DAE121
  • Rs. 10.03 (inc GST)
    Rs.8.50 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

74HC595 8 Bit Serial to Parallel Shift Register

74HC595 SMD SOP-14 8 bit Serial to parallel shift register

The CD74HC595 device is an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift and storage registers. The 74HC595 shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial output for cascading. When the output-enable (OE) input is high, the outputs are in the high-impedance state.

Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered. If both clocks are connected together, the shift register always is one clock pulse ahead of the storage register.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 74HC595 Serial to Parallel Shift Register

  • 8-bit serial input
  • 8-bit serial or parallel output
  • Storage register with 3-state outputs
  • Shift register with direct clear
  • 100 MHz (typical) shift out frequency

Application of 74HC595 Serial to Parallel Shift Register

  • Serial-to-parallel data conversion
  • Remote control holding register
