74HC164D NEXPERIA Shift Register IC

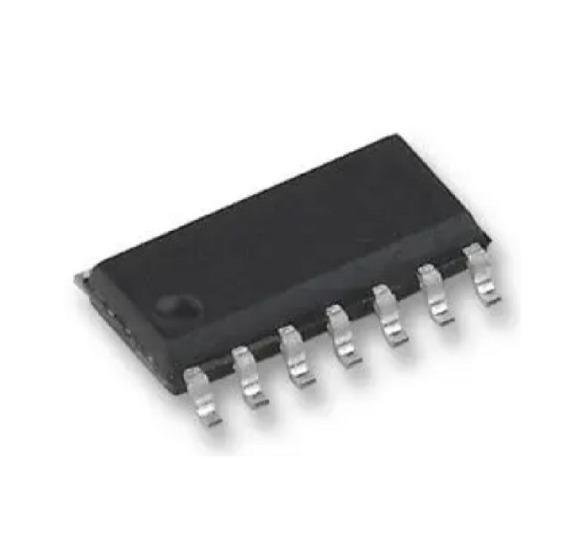

Nexperia 74HC164D Shift Register IC

74HC164D Nexperia Shift Register IC supports serial-in/parallel-out with 8 outputs and asynchronous master reset.

The Nexperia 74HC164D Shift Register IC is designed for efficient data handling in electronic circuits. This 8-bit serial-in/parallel-out IC features two serial data inputs (DSA and DSB) and eight parallel outputs (Q0 to Q7). The data is shifted on clock transitions, making it ideal for applications requiring reliable data transfer. The 74HC164D also includes an asynchronous master reset for quick clearing of outputs, ensuring your circuits remain under control.

With its CMOS input level and gated serial data inputs, the Nexperia 74HC164D is suitable for both industrial and consumer electronic applications. This IC complies with JEDEC standard No. 7A, making it a dependable choice for designers. Its compact SOIC package ensures easy integration into various electronic systems.

Explore the capabilities of the 74HC164D in your next project, whether in automation, consumer electronics, or complex digital systems. This shift register provides reliable performance and flexibility for any electronics design.

At DNA, we offer a comprehensive range of Nexperia 7400 Series IC's. Explore the 7400 Series IC's category for high-quality components that meet your design needs. Check other "7400 Series IC's" that we have in stock.

If you are looking for specific electronic components, DNA can help. We can import hard-to-find parts and support both retail and bulk orders. Explore related items like Nextion Display, Development Module, Analog IC, and more. Contact Us.

Features of Nexperia 74HC164D Shift Register IC

• 8-bit serial-in/parallel-out
• Asynchronous master reset
• Complies with JEDEC standard No. 7A
• CMOS input level
• Gated serial data inputs

Specification of Nexperia 74HC164D Shift Register IC

• Manufacturer: Nexperia
• IC Type: Shift Register
• No. of Pins: 14
• Logic Family: 74HC164
• Shift Register Function: Serial to Parallel
• No. of Elements: 1
• Case/Package: SOIC

Applications of Nexperia 74HC164D Shift Register IC

• Industrial applications
• Consumer electronics
• Data shifting in digital circuits
• Automation systems

Related Links for Nexperia 74HC164D Shift Register IC

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X Nexperia 74HC164D Shift Register IC
