74LS02 Quad NOR Gate IC with low power consumption, fast switching speed, and wide operating voltage range.

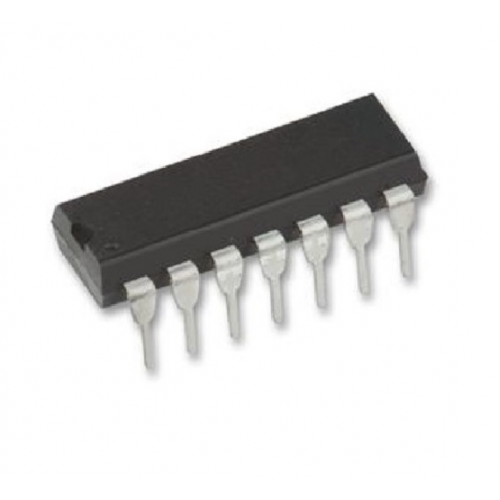

The 74LS02 Quad 2 Input NOR Gate DIP IC is a versatile component from the 7400 Series IC's, featuring four 2-input NOR gates in a compact 14-pin DIP package. It operates on a standard voltage range of 4.75V to 5.25V, making it suitable for various digital applications. The IC's low power consumption and fast switching speed, with a typical propagation delay of about 10ns, ensure reliable performance in control systems and logic-level manipulation.

Ideal for digital logic control circuits, the 74LS02 Quad 2 Input NOR Gate DIP IC simplifies the design of timing and pulse generation circuits. It provides logic signal inversion, enabling effective arithmetic and data processing systems. With an output drive capability of 8mA and built-in input clamping diodes, this IC minimizes transmission line effects, enhancing overall circuit stability.

Explore the potential of the 74LS02 Quad 2 Input NOR Gate DIP IC for your projects. Its reliable operation and compatibility with standard TTL logic levels make it a preferred choice for engineers and hobbyists alike. Utilize this component for effective LED and display control logic as well.

Explore the reliability of Texas Instruments 7400 Series IC's at DNA. We offer a range of Gate IC's tailored to meet your needs. Check other "7400 Series IC's" that we have in stock.

If you are looking for specific electronic components and cannot find them, reach out to us. We can import parts if they are not available and support both retail and bulk orders. We also offer related items like HMI Displays, SMPS, Programmers, Sensors, Hongfa Relays, and Crystals. Contact Us.

Features of 74LS02 Quad 2 Input NOR Gate DIP IC

• Quad 2-input NOR gates in a single IC
• Low power consumption with Schottky TTL technology
• Fast switching speed (typical propagation delay ~10ns)
• Wide operating voltage range: 4.75V to 5.25V
• Standard 5V TTL logic levels
• Output drive: 8mA (sink) and -0.4mA (source)
• Built-in input clamping diodes

Specification of 74LS02 Quad 2 Input NOR Gate DIP IC

• Manufacturer: Texas Instruments
• Gate IC Type: NOR
• Case/Package: DIP 14
• No. of Pins: 14

Applications of 74LS02 Quad 2 Input NOR Gate DIP IC

• Digital logic control circuits
• Timing and pulse generation circuits
• Logic signal inversion and combination
• Arithmetic and data processing systems
• LED and display control logic

Related Links for 74LS02 Quad 2 Input NOR Gate DIP IC

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 74LS02 Quad 2 Input NOR Gate DIP IC
