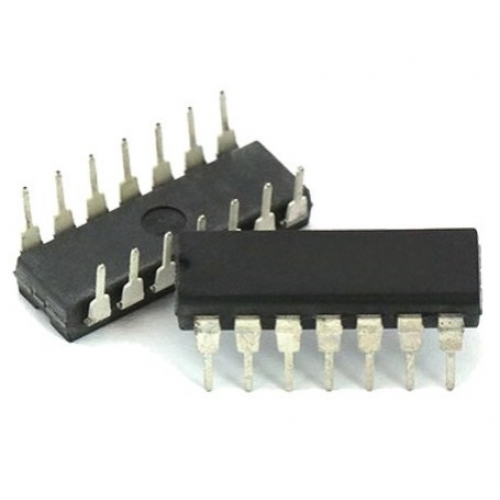

74LS04 Hex Inverter NOT Gate DIP IC

74LS04 Hex Inverter NOT Gate DIP IC

74LS04 is Hex Inverter NOT gate IC. It consists of six inverters that perform logical invert action. the output of an inverter is the complement of its input logic state i.e. when input is high its output is low and vice versa. the device contains six independent gates each of which performs the logic INVERT function. The operating voltage is 5V, the high-level input voltage is 2V, and the low-level input is 0.8V. Contains absolute maximum ratings over the operating free-air temperature range, recommended operating conditions, and electrical characteristics over the recommended operating free-air temperature range.

DNA solutions, Nashik has various types of Gate IC's. Check out our complete collection of Gate IC's.

• Wide Operating Conditions

• Large Operating Voltage Range

• Outputs Directly Interface to CMOS, NMOS, and TTL

• 6 Hex Inverters in a 14-Pin DIP Package

Specifications of 74LS04 Hex Inverter NOT Gate DIP IC

•  IC Type: Gate IC

• Gate IC Type: INVERT

• Rated Voltage (V): 4.75 to 5.25

• Current Rating (A): 16mA

• Operating Temperature (°C): 0 to 70

• No. of Pins: 14

• Mounting Type: Through Hole

Applications of 74LS04 Hex Inverter NOT Gate DIP IC

• Logic Signal Inversion

• Pulse Shaping

• Level Shifting

• Testing and Experimentation

Package Includes

      1 x 74LS04 Hex Inverter NOT Gate DIP IC
