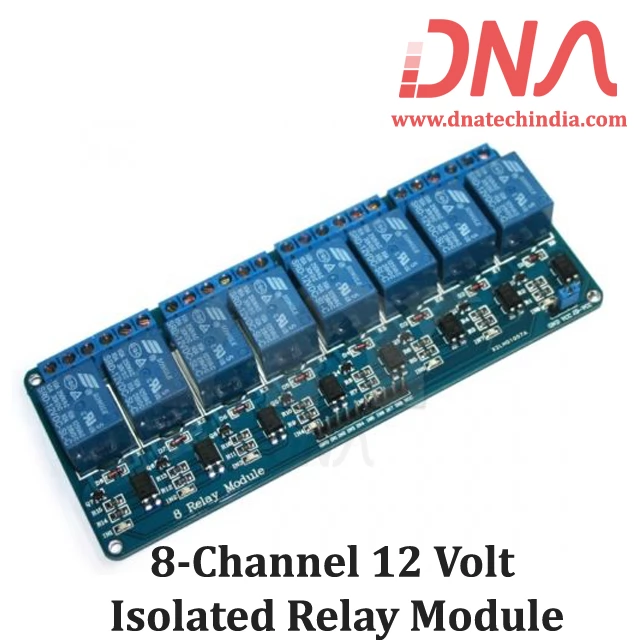

• 8 Channel 12 Volt Isolated Relay Module

Product Images are shown for illustrative purposes only and may differ from actual product.

8 Channel 12 Volt Isolated Relay Module

  • Stock: 1
  • SKU: 1306 | DAB292
  • Rs. 332.05 (inc GST)
    Rs.281.40 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

8 Channel 12 Volt Isolated Relay Module

Isolated 8 channel 12 Volts Relay Modules

This is a optically isolated 8 channel relay module having 12 Volt cube Relays. The relays in the 8 channel 12 volts isolated relay module are driven by a optocoupler which provides isolation between your Micro-controller, Arduino or Raspberry Pi & the relay thus making this module better that the modules having transistor or ULN2003 IC as drivers.

This is a 8 channel 12 volts isolated Relay Module with output relay contacts of 10 ampere at 250 volts.  You can use it easily with any Micro-controller, Arduino or Single Board Computers (SBC) like Raspberry Pi and Beagle bone. You can even use this module with digital IC's like LM555 or HT12D.

We have various types of Relay & SSR Modules which you can use to control appliances. Check out our complete collection of MOSFET, SSR & Relay Modules. We also have various types of high quality Relays & SSR

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 8 channel 12 volt Isolated Relay Module

  • This relay module is 12 Volt active low.
  • It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
  • It is also able to control various appliances and other equipments with large current.
  • Relay output maximum contact is AC250V 10A and DC30V 10A.
  • Standard interface can be directly connected with microcontrollers.
  • Red working status indicator lights are conducive to the safe use.
  • Widely used for all MCU control, industrial sector, PLC control, smart home control.
  • Input port IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 low signal level effectively.
  • VCC, GND : Input power.
  • JD - VCC : Relay power input port,relay can power alone.
  • Working voltage : 12V
  • Module weight : about 112g
  • package weight : about 150g
  • module size : about 1.7cm X 5.5cm X 13.7cm(height * width * long)

Applications of Relay Board

  • Support all single-chip microcomputer control.
  • Industrial fields;
  • PLC control;
  • Household intelligent control

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
