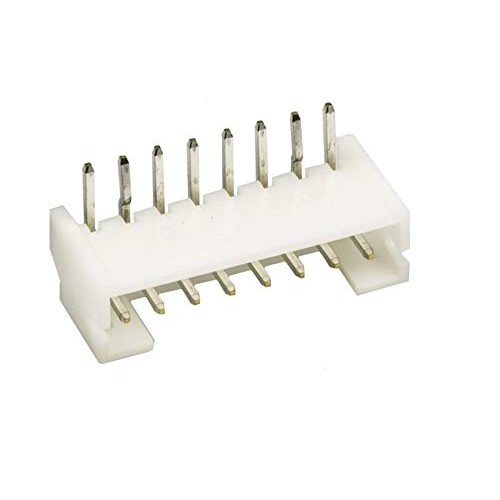

• 8 Pin 2.5mm JST PH Right Angle Male Connector

Product Images are shown for illustrative purposes only and may differ from actual product.

8 Pin 2.5mm JST PH Right Angle Male Connector

  • Stock: 15
  • SKU: 9209 | DAE942
  • Rs. 13.22 (inc GST)
    Rs.11.20 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

8 Pin 2.5mm JST PH Right Angle Male Connector

8 Pin 2.5mm JST PH Right Angle Male Connector

The 8-Pin 2.5mm JST PH Right Angle Male Connector is a compact and reliable wire-to-board connector, widely used in various electronic applications. Its right-angle design allows for horizontal mounting on PCBs, making it ideal for space-constrained environments.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 8 Pin 2.5mm JST PH Right Angle Male Connector

  • Compact Design: With a 2.0mm pitch, this connector is ideal for applications requiring space-saving solutions.
  • Right-Angle Configuration: The side-entry, right-angle design allows for horizontal mounting on PCBs, facilitating streamlined layouts.
  • Secure Connection: Designed to provide a reliable and stable connection, minimizing the risk of disconnection due to vibrations or movement.
  • High Durability: Constructed with quality materials to ensure longevity and consistent performance.
  • Versatility: Commonly used in battery connections, LED lighting systems, small electronic devices, and prototyping boards.

Specifications of 8 Pin 2.5mm JST PH Right Angle Male Connector

  • Connector Series: JST PH
  • Number of Pins: 8
  • Pitch: 2.0 mm
  • Mounting Type: Through-Hole, Right Angle
  • Current Rating: Up to 2 A
  • Voltage Rating: Up to 100 V
  • Contact Resistance: 10 mΩ max
  • Insulation Resistance: 1000 MΩ min

Applications of 8 Pin 2.5mm JST PH Right Angle Male Connector

  • Battery Connections in RC Models and Drones
  • Consumer Electronics
  • DIY Electronics and Prototyping
  • Medical Devices

    Package Includes

          1 x 8 Pin 2.5mm JST PH Right Angle Male Connector

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
