92007-1 Headers And Wire Housings

92007-1 Headers And Wire Housings

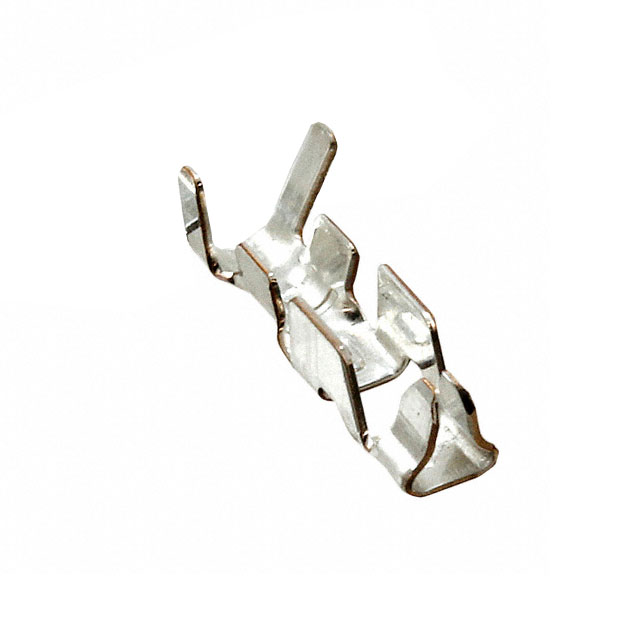

The TE Connectivity 92007-1 is a crimp socket contact used in wire-to-board connections within the 2.5mm Metric Interconnect System. It supports 30–22 AWG wires and is made of tin-plated phosphor bronze for reliable conductivity and durability. Designed for a current rating up to 2.5 A, it operates within a -25°C to +105°C temperature range. Ideal for signal transmission in consumer electronics and industrial equipment, it is compatible with TE housings like the 92009 series.

DNA solutions, Nashik has various types of Header's. Check out our complete collection of Header's.

• Crimp termination for secure and reliable wire connection

• Supports 30–22 AWG wires (0.05–0.35 mm²)

• Rated up to 2.5 A for signal-level applications

• Tin-plated phosphor bronze for corrosion resistance and conductivity

• Wide operating temperature range: -25°C to +105°C

• Compatible with 2.5 mm pitch housings in the Metric Interconnect System (MIS)

Specifications of 92007-1 Headers And Wire Housings

• Product: Contacts

• Type: Socket

• Mounting Style: Cable Mount / Free Hanging

• Termination Style: Crimp

• Contact Gender: Socket (Female)

• Contact Plating: Tin

• Series: METRIC

• Wire Gauge: 30 AWG to 22 AWG

• Packaging: Reel

• Brand: TE Connectivity

• Contact Material: Phosphor Bronze

• Product Type: Headers & Wire Housings

Applications of 92007-1 Headers And Wire Housings

• Consumer electronics

• Computers and peripherals

• Industrial control systems

• Power supplies and low-voltage devices

Package Includes

      1 x 92007-1 Headers And Wire Housings
