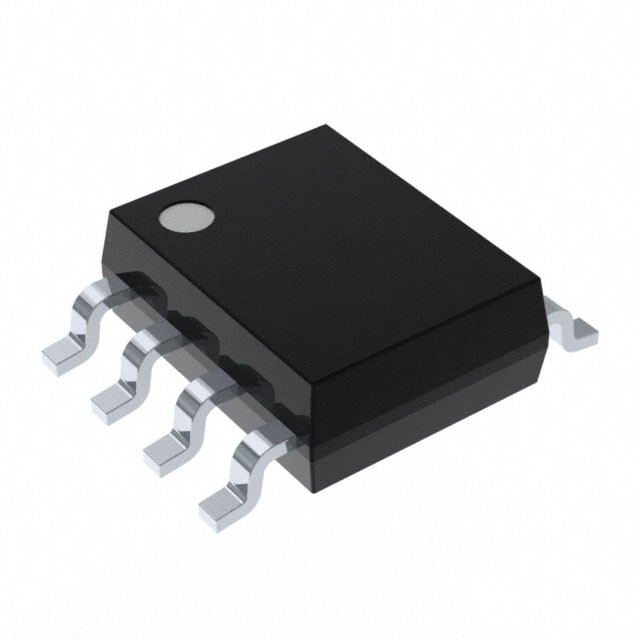

MAX4081FASA+ (8 SOIC) Amplifier SMD IC

MAX4081FASA+ High-Side Current-Sense Amplifier IC

MAX4081FASA+ Amplifier IC for precise current sensing with 4.5V to 76V range and 20V/V, 60V/V, or 100V/V gain options.

The MAX4081FASA+ High-Side Current-Sense Amplifier IC is designed for accurate current monitoring in high-voltage DC systems. With an input voltage range of 4.5V to 76V, this amplifier provides various gain options, making it versatile for different applications. Its low offset voltage ensures high accuracy, while the compact 8-pin SOIC package allows for easy integration into various devices.

This amplifier is ideal for automotive, telecommunications, and industrial control systems, where precise current measurement is crucial. The MAX4081FASA+ features a high common-mode rejection ratio (CMRR), making it effective in dynamic load environments. Its rail-to-rail output type ensures maximum efficiency in power management systems.

For applications requiring reliable performance, the MAX4081FASA+ High-Side Current-Sense Amplifier IC stands out as a dependable choice. Explore its capabilities for DC motor control and other industrial uses where accurate current sensing is essential.

Discover high-quality solutions from Power Devices at DNA. Explore our range of reliable amplifiers and other Power Devices to meet your electronic needs. Check other "Power Devices" that we have in stock.

If you're searching for specific electronic components, reach out to us. We can help with imports for hard-to-find parts and support both retail and bulk orders. Consider our range of related items like Sensors, Microcontrollers, DC to DC Converter Modules, Transistors, and Analog ICs. Contact Us.

Features of MAX4081FASA+ High-Side Current-Sense Amplifier IC

• High-side current-sense amplifier
• Wide 4.5V to 76V input voltage range
• Available gain options: 20V/V, 60V/V, 100V/V
• Low offset voltage for high accuracy
• High common-mode rejection ratio (CMRR)
• Compact 8-SOIC package

Specifications of MAX4081FASA+ High-Side Current-Sense Amplifier IC

• Operating Voltage Range: 4.5V to 76V
• Gain: 20V/V (F variant)
• Input Offset Voltage: ±0.6mV (typical)
• Output Type: Rail-to-Rail
• Temperature Range: -40°C to +125°C
• Package: 8-pin SOIC

Applications of MAX4081FASA+ High-Side Current-Sense Amplifier IC

• Automotive current sensing
• Industrial control systems
• Telecommunications equipment
• Power management systems
• DC motor control

Package Includes

• 1 X MAX4081FASA+ High-Side Current-Sense Amplifier IC
