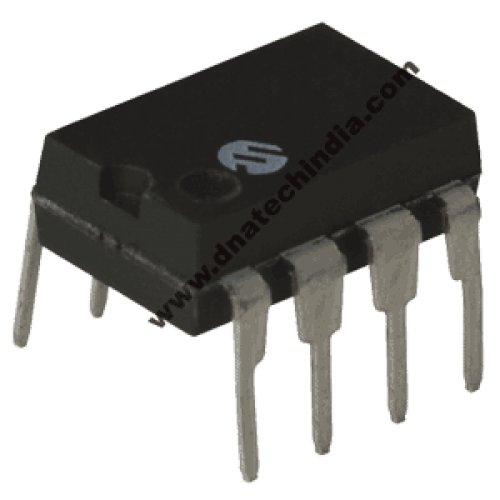

MCP3201 ADC

MCP3201: 12bit single channel ADC with SPI interface

The Microchip Technology's. MCP3201 is a successive approximation 12-bit Analog-to-Digital (A/D) Converter with on-board sample and hold circuitry. The device provides a single pseudo-differential input. Differential Nonlinearity (DNL) is specified at ±1 LSB, and Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3201-B) and ±2 LSB (MCP3201-C) versions. Communication with the device is done using a simple serial interface compatible with the SPI protocol. The device is capable of sample rates of up to 100ksps at a clock rate of 1.6MHz. The MCP3201 operates over a broad voltage range (2.7V - 5.5V). Low current design permits operation with typical standby and active currents of only 500nA and 300µA, respectively.

Features of MCP3201

• 12-bit resolution

• ±1 LSB max DNL

• ±1 LSB max INL (MCP3201-B)

• ±2 LSB max INL (MCP3201-C)

• On-chip sample and hold

• SPI™ serial interface (modes 0,0 and 1,1)

• Single supply operation: 2.7V - 5.5V

• 100ksps max. sampling rate at VDD= 5V

• 50ksps max. sampling rate at VDD= 2.7V

• Low power CMOS technology

• 500nA typical standby current, 2µA max

• 400µA max. active current at 5V

• Industrial temp range: -40°C to +85°C

• 8-pin PDIP
