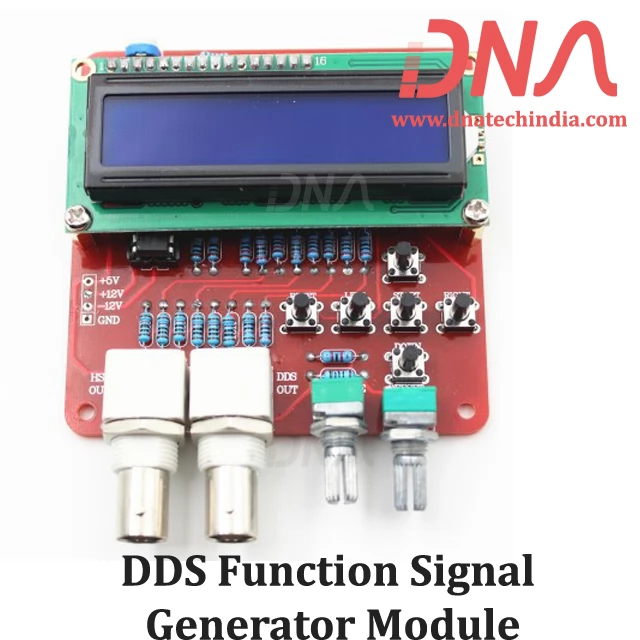

DDS Function Signal Generator Module
- Stock: 3
- Brand: Generic
- SKU: 1337 | DAA925
-
Rs. 1,503.32 (inc GST)
Rs.1,274.00 + GSTQty :
| Also Available: W5500 TCP / IP SPI to LAN Ethernet Interface Converter. in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
DDS Function Signal Generator Module
Using this Signal Generator you can generate Sine wave, square wave, saw-tooth wave & Triangular waveform.
Perfect if you want a low cost function generator module perfect for makers & hobbyist. Direct digital synthesizer (DDS) is a type of frequency synthesizer used for creating arbitrary waveforms from a single, fixed-frequency reference clock. Applications of DDS include : signal generation, local oscillators in communication systems, function generators, mixers, modulators, sound synthesizers and as part of a digital phase-locked loop.
We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specifications & Features of DDS
- Material : PCB + Electronic Components
- Power Supply : +5V / +12V / -12V
- HS Signal Frequency : 1, 2, 4, 8 MHz
- PCB Module Size : 10cm X 8cm X 2cm
- Simple circuit
- Dedicated high speed (HS) signal output up to 8MHz
- DDS signal with variable amplitude and offset
- DDS signals: sine, square, saw, rev saw, triangle, ECG and noise
- 2×16 LCD menu
- Intuitive 5 button keypad
- Frequency adjusting steps : 1, 10, 100, 1000, 10000Hz
- Restoring last configuration after power up.
