  • PIC16F877A

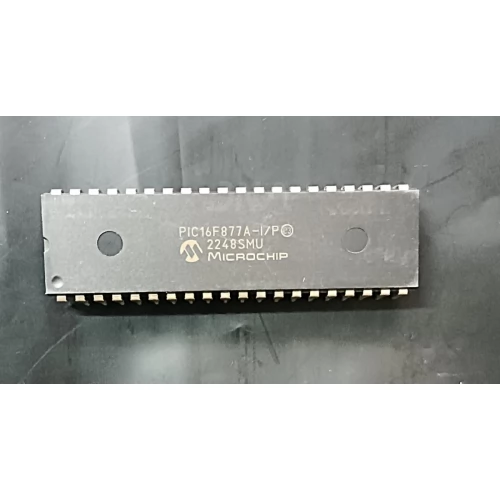

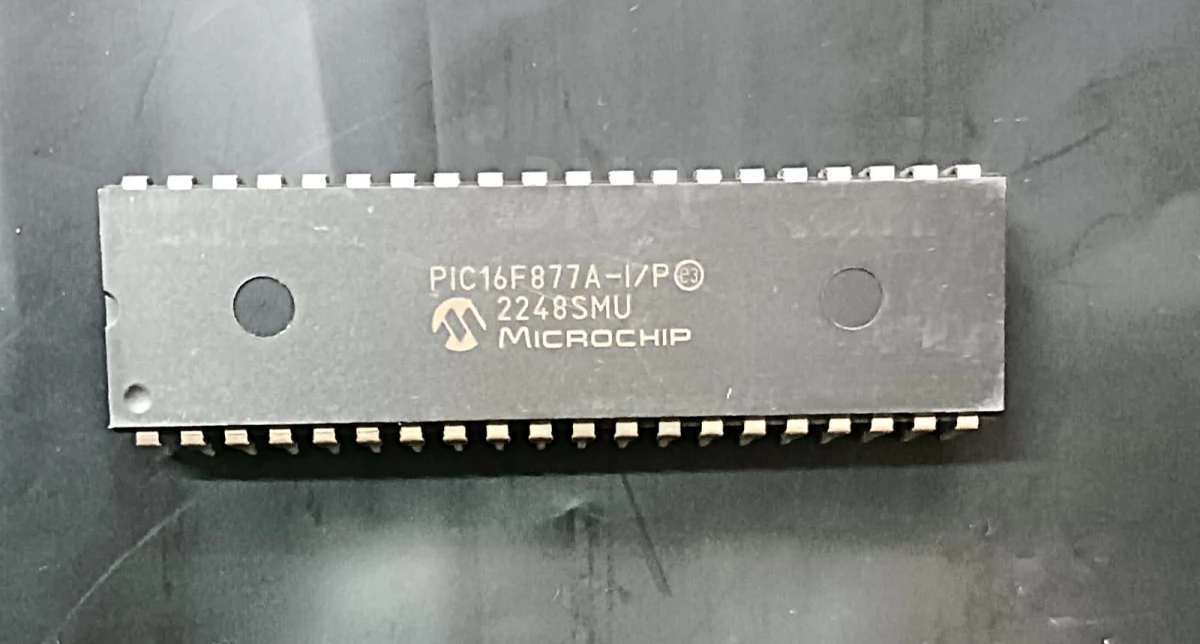

Product Images are shown for illustrative purposes only and may differ from actual product.

PIC16F877A

  • Rs. 313.88 (inc GST)
    Rs.266.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PIC 16F877a

Microchips 40 Pin Enhanced Microcontroller

This powerful yet easy-to-program CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 40- or 44-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F877A features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 8 channels of 10-bit Analog-to-Digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Features of PIC16f877a Microcontroller

  • Timer0 : 8-bit timer/counter with 8-bit prescaler
  • Timer1 : 16-bit timer/counter with prescaler,can be incremented during Sleep via external crystal/clock
  • Timer2 : 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Two Capture, Compare, PWM modules
  • Capture is 16-bit, max. resolution is 12.5 ns
  • Compare is 16-bit, max. resolution is 200 ns
  • PWM max. resolution is 10-bit
  • Synchronous Serial Port (SSP) with SPI™ (Master mode) and I2C™ (Master/Slave)
  • Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9 bit address detection
  • Parallel Slave Port (PSP) – 8 bits wide with external RD, WR and CS controls (40/44-pin only)
  • Brown-out detection circuitry for Brown-out Reset (BOR)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
