  • PIC18F4520-I/PT SMD TQFP Package

Product Images are shown for illustrative purposes only and may differ from actual product.

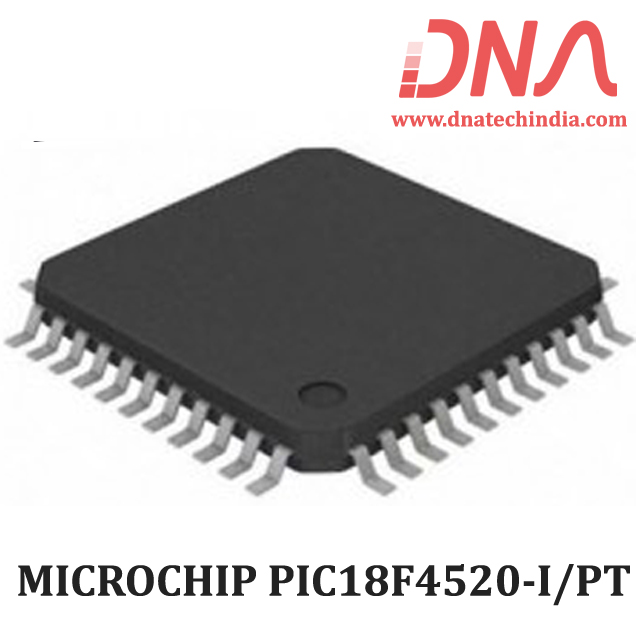

PIC18F4520-I/PT SMD TQFP Package

  • Stock: 2
  • Brand: Microchip
  • SKU: 2613 | DAE039
  • Rs. 1,074.98 (inc GST)
    Rs.911.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PIC18F4520-I/PT

PIC18f4520 44-PIN PIC Microcontroller with 10 bit A/D

PIC18f4520 offers the advantages of all PIC18 microcontroller – namely, high computational performance at an economical price – with the addition of high-endurance, Enhanced Flash program memory.On top of these features, the PIC18F4520 microcontroller introduces design enhancements that make this microcontroller a logical choice for many high-performance, power sensitive applications.

We have various types of Microcohip make Microcontrollers. Check our complete collection of PIC Microcontrollers.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PIC18f4520 Microcontroller

  • Run : CPU on, Peripherals on
  • Idle : CPU off, Peripherals on
  • Sleep : CPU off, Peripherals offUltra Low 50nA Input Leakage
  • Run mode Currents Down to 11 μA Typical
  • Idle mode Currents Down to 2.5 μA Typical
  • Sleep mode Current Down to 100 nA Typical
  • Timer1 Oscillator : 900 nA, 32 kHz, 2V
  • Watchdog Timer : 1.4 μA, 2V Typical
  • Two-Speed Oscillator Start-up

Specifications of PIC18f4520 Microcontroller

  • Base MPN : PIC18F4520
  • Connectivity : I²C, SPI, UART/USART
  • Core Processor : PIC
  • Core Size : 8 Bit
  • Data Converters : A/D 13x10b
  • EEPROM Size : 256 x 8
  • Manufacturer Part Number : PIC18F4520-I/PT
  • Manufacturer Standard Lead Time : 7 Weeks
  • Mounting Type : Surface Mount
  • Number of I/O : 36
  • Operating Temperature : -40°C ~ 85°C (TA)
  • Oscillator Type : Internal
  • Package / Case : 44-TQFP
  • Packaging : Tray
  • Peripherals : Brown-out Detect/Reset, HLVD, POR, PWM, WDT
  • Program Memory Size : 32KB (16K x 16)
  • Program Memory Type : FLASH
  • RAM Size : 1.5K x 8
  • RoHS Status : ROHS3 Compliant
  • Series : PIC® 18F
  • Speed : 40MHz
  • Standard Package : 160
  • Supplier Device Package :44-TQFP (10x10)
  • Voltage - Supply (Vcc/Vdd) : 4.2V ~ 5.5V
  • Height : 1 mm
  • Length : 10 mm

Related Link

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
