Product Images are shown for illustrative purposes only and may differ from actual product.

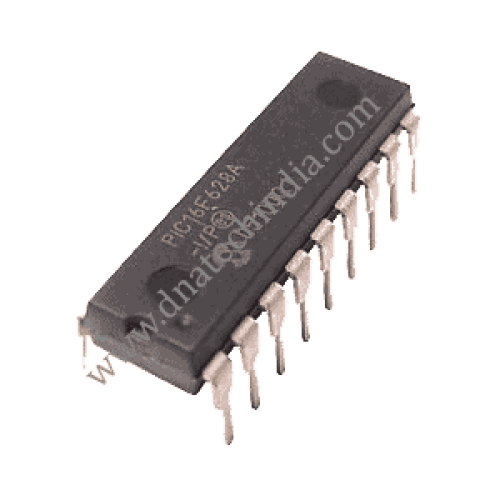

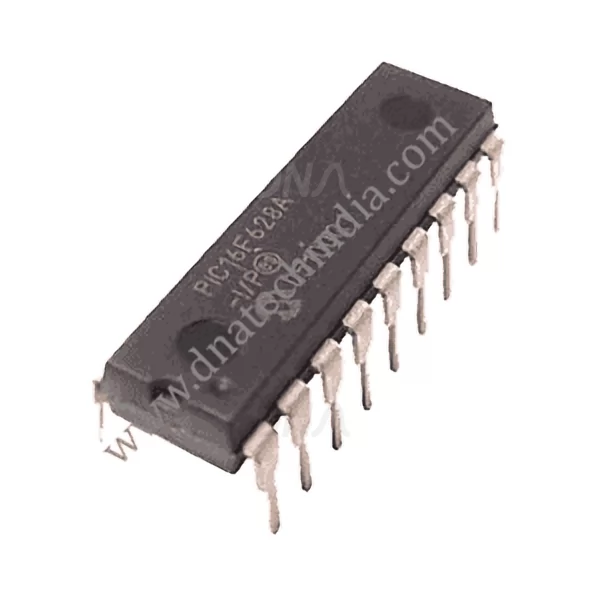

PIC16F628


Write a review | 0 reviews

  • Stock: 17

    Availability: InStock priceValidUntil: 2026-03-11

  • SKU: 152 | DAA304

Availability: InStock priceValidUntil: 2026-03-11

  • Rs. 160.48 (inc GST)
    Rs.136.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

PIC16F628

PIC16f628 Flash-Based, 8-Bit CMOS Microcontrollers with nanoWatt Technology

  • 16 I/O pins with individual direction control
  • High current sink/source for direct LED drive
  • Analog comparator module with :-Two analog comparators
  • Programmable on-chip voltage reference (VREF) module
  • Timer 0 : 8-bit timer/counter with 8-bit programmable prescaler
  • Timer 1 : 16-bit timer/counter with external crystal/clock capability
  • Timer 2 : 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Capture, Compare, PWM module:16-bit Capture/Compare
  • Addressable Universal Synchronous, Asynchronous Receiver,Transmitter USART, SCI

High-Performance RISC CPU:

  • Operating speeds from DC – 20 MHz
  • Interrupt capability
  • 8-level deep hardware stack
  • Direct, Indirect and Relative Addressing modes
  • 35 single-word instructions: -All instructions single cycle except branches

Low-Power Features:

  • Standby Current :- 100 nA @ 2.0V, typical
  • Operating Current :- 12 μA @ 32 kHz, 2.0V, typical- 120 μA @ 1 MHz, 2.0V, typical
  • Watchdog Timer Current :- 1 μA @ 2.0V, typical
  • Timer1 Oscillator Current :- 1.2 μA @ 32 kHz, 2.0V, typical
  • Dual-speed Internal Oscillatorv :- Run-time selectable between 4 MHz and 48 kHz- 4 μs wake-up from Sleep, 3.0V, typical

Special Microcontroller Features:

  • Internal and external oscillator options:
           - Precision internal 4 MHz oscillator factory calibrated to ±1%

           - Low-power internal 48 kHz oscillator

           -  External Oscillator support for crystals and resonators

  • Power - saving Sleep mode
  • Programmable weak pull - ups on PORTB
  • Multiplexed Master Clear / Input-pin
