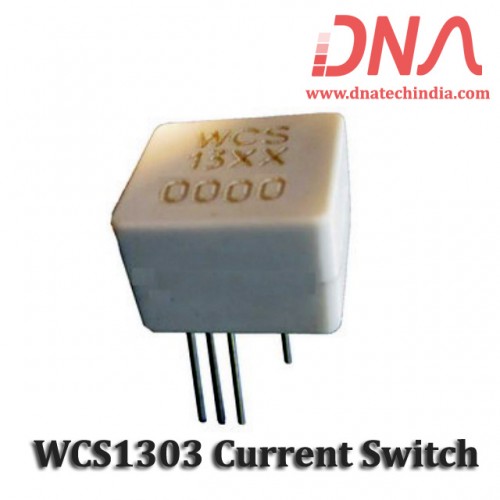

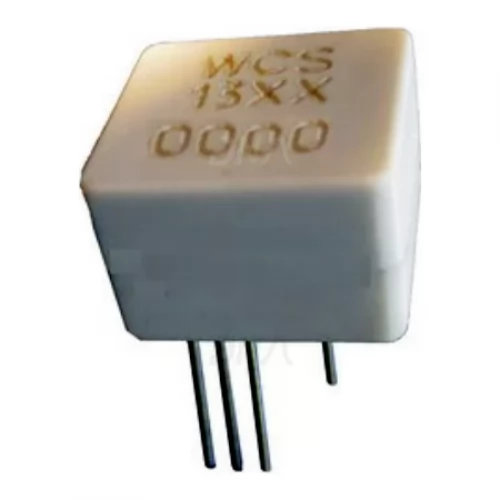

WCS1303 Hall Effect Base Current Switch

WCS1303 Hall Effect Current Switch

WCS1303 Current Sensor for current detection with 8.3 mΩ resistance, low power loss, and electrical isolation.

The WCS1303 Hall Effect Current Switch offers a reliable solution for current detection in various applications. With its low internal conductor resistance of 8.3 mΩ, the WCS1303 minimizes power loss and operating temperature. This feature enhances the sensor's reliability, making it ideal for short circuit detection and over-current fault detection in industrial settings.

Operating within a voltage range of 2.6 to 18 V, the WCS1303 operates at a low current of just 2.0 mA. It generates a magnetic field that is sensed by the integrated Hall switch IC, providing clear output signals based on the current flow. This sensor's design allows for electrical isolation without additional costly components, making it a cost-effective choice for modern electronic systems.

Explore the advantages of the WCS1303 Hall Effect Current Switch for your projects. It is suitable for load detection and various industrial applications, ensuring quality and performance. Visit our collection of Current and Voltage Sensors for more options.

Discover the precision of in the Current and Voltage Sensor category at DNA. Our Current and Voltage Sensors are designed for efficiency and reliability. Check other "Current and Voltage Sensor" that we have in stock.

If you are looking for specific electronic components, reach out to us. We can import parts that are not available and support both retail and bulk orders. Explore our range of related items like Sensors, Connectors, DC to DC Converter ICs, Power Supplies, MOSFETs, and Sensor Modules. Contact Us

Features of WCS1303 Hall Effect Current Switch

• 8.3 mΩ internal conductor resistance
• Output “Low” when IP>= Iop
• Output “High” when IP < Irp
• Wide operating voltage range 2.6~18 V
• Low operating current 2.0mA
• 10 KHz bandwidth
• Operating Point Iop: Min 2.0Amp
• Max 3.0Amp
• Release Point Irp: Min 1.5Amp

Specification of WCS1303 Hall Effect Current Switch

• Internal resistance: 8.3 mΩ
• Operating voltage range: 2.6~18 V
• Operating current: 2.0 mA
• Bandwidth: 10 KHz
• Operating Point Iop: 2.0-3.0 Amp
• Release Point Irp: 1.5 Amp

Applications of WCS1303 Hall Effect Current Switch

• Short circuit detection
• Load detection
• Over-current fault detection
• Industrial electronic systems
• Commercial electronic systems

Related Links for WCS1303 Hall Effect Current Switch

• Other Products from Current and Voltage Sensor Category

Package Includes

• 1 X  WCS1303 Hall Effect Current Switch
