• Force sensitive Resistor Square

Product Images are shown for illustrative purposes only and may differ from actual product.

Force sensitive Resistor Square

  • Stock: Out Of Stock
  • SKU: 0522 | DAC634

Availability: NotInStock priceValidUntil: 2025-09-27

  • Rs. 580.14 (inc GST)
    Rs.491.64 + GST

    Qty :

  • Quantity Pricing (inc GST)

    3 + 567.20 7 + 554.26 10 + 541.33 20 + 528.39

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

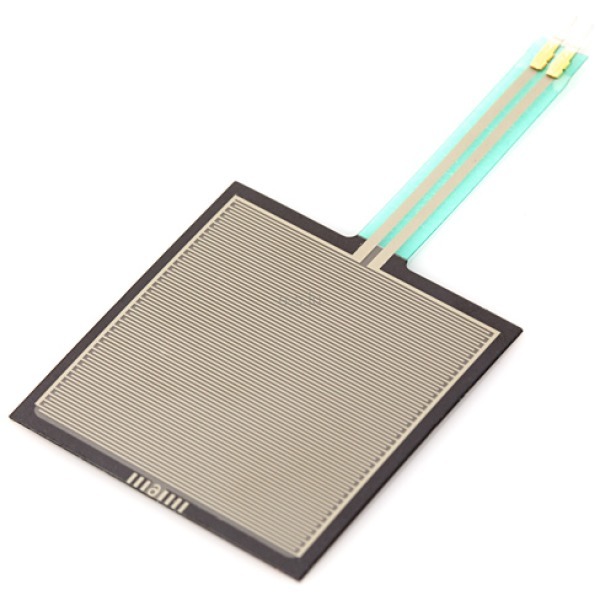

Force sensitive Resistor Square

Use this simple Force Sensitive Resistor to measure how much pressure is being applied.

This is a small Square Force Sensitive Resistor with a active size of 38mm x 38m.
The output resistance of the FSR Sensor is inversely proportional to the pressure being applied to the active area. The more the pressure the lesser the resistance. When no pressure is applied to the sensor the output resistance is more than 1 Mohm. And when maximum pressure is applied the resistance is 2.5 Kohm. This FSR can sense applied force anywhere in the range of 100g-10kg.
This is a breadboard friendly sensor i.e. it can be connected directly on the bread board. The output pins of the sensor has 0.1" i.e. 2.5 mm pitch.

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
