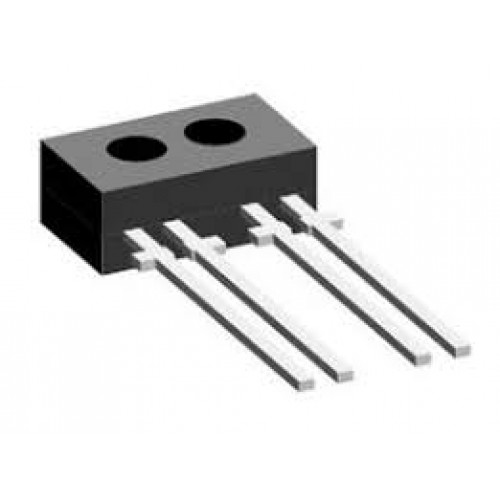

TCRT1000 Reflective Optical Sensor

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-26
SKU: 1568 | DAA033

Rs. 123.90 (inc GST)
Rs.105.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

TCRT1000 Reflective Optical Sensor Module

TCRT1000 Sensor Module for optical sensing with peak distance of 1mm and operating range of 0.2mm to 4mm.

The TCRT1000 Reflective Optical Sensor Module is designed for precise optical sensing applications. It integrates an infrared emitter and a photo-transistor, effectively blocking visible light for accurate readings. This module operates within a distance range of 0.2 mm to 4 mm, making it ideal for applications like optoelectronic scanning and coded disk scanning. Its compact design measures just 7 x 4 x 2.5 mm, ensuring easy integration into various projects.

Built with a daylight blocking filter, the TCRT1000 Reflective Optical Sensor Module ensures reliable performance in diverse lighting conditions. It supports a maximum collector current of 50 mA and operates effectively within temperatures ranging from -40°C to +85°C. This sensor module is perfect for optoelectronic encoder assemblies, enhancing the efficiency of your electronic devices.

Experience the versatility of the TCRT1000 Reflective Optical Sensor Module in your projects. Whether you are developing scanning devices or other optical applications, this sensor provides the reliability and performance you need. Explore how this product can elevate your electronic designs today.

Explore advanced solutions with the TCRT1000 from DNA, a leader in Sensor Modules. Discover more in our Sensor Modules category. Check other Sensor Modules that we have in stock.

If you require specific electronic components, reach out to us. We can source hard-to-find parts and support both retail and bulk purchases. Consider exploring our offerings like Programmers, Nextion Displays, MOSFETs, Power Supplies, Transistors, and Crystals. Contact Us

Features of TCRT1000 Reflective Optical Sensor Module

Leaded package
Infrared emitter and photo-transistor
Daylight blocking filter
Compact dimensions
RoHS compliant

Specification of TCRT1000 Reflective Optical Sensor Module

Peak operating distance: 1 mm
Operating range: 0.2 mm to 4 mm
Typical output current: 0.5 mA
Collector-Emitter Voltage VCEO Max: 32 V
Maximum Collector Current: 50 mA
Forward Voltage: 1.25 V
Reverse Voltage: 5 V
Temperature Range: -40°C to +85°C

Applications of TCRT1000 Reflective Optical Sensor Module

Optoelectronic scanning
Index sensing
Coded disk scanning
Optoelectronic encoder assemblies

Package Includes

1 X TCRT1000 Reflective Optical Sensor Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
