74153 Dual 1-of-4 Line Data Selectors/Multiplexers

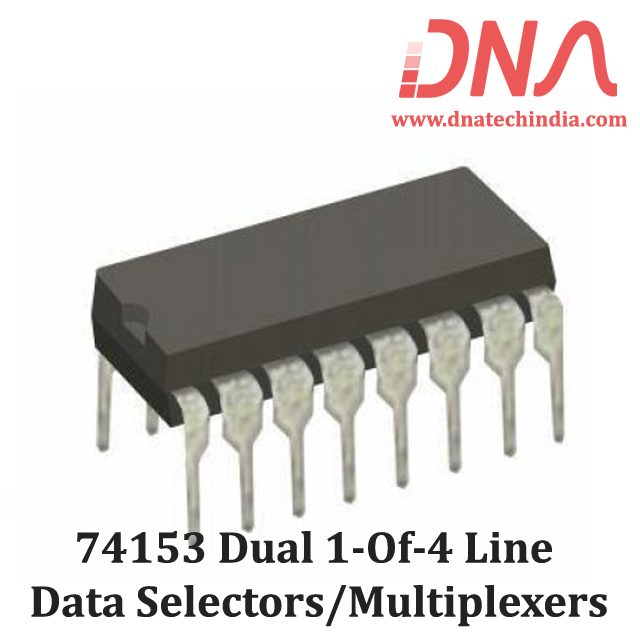

74153 Dual 1-of-4 Line Data Selector

74153 Dual 1-of-4 Selector/Multiplexer with low impedance outputs and 14 ns propagation delay.

The 74153 Dual 1-of-4 Line Data Selector serves as a versatile multiplexer, enabling efficient data selection from multiple lines. It features inverters and drivers for binary decoding, ensuring reliable performance in various applications. With a typical propagation delay of just 14 ns, this device supports fast data processing and is ideal for parallel-to-serial conversion tasks.

Designed for a wide range of uses, the 7400 Series IC 74153 includes strobe inputs for cascading multiple lines. Its high fan-out and low impedance outputs make it suitable for complex electronic circuits. Operating within a temperature range of 0°C to +70°C, this component is perfect for both industrial and consumer electronics.

At DNA, we offer a complete range of the 7400 Series IC 74153 and other ICs, catering to your electronic component needs. Explore our collection to enhance your projects with reliable components that ensure optimal performance.

Explore the reliable 7400 Series IC's at DNA. The 7400 Series offers quality electronic components designed for various applications. Check other 7400 Series IC's that we have in stock.

If you need specific electronic components, reach out to us. We can help you find parts like Crystal, Microcontroller, DC to DC Converter IC, MOSFET, Sensor, and Capacitor. If it's not available, we can import it for you. Contact Us

Features of 74153 Dual 1-of-4 Line Data Selector

• Permits multiplexing from N lines to 1 line
• Performs parallel-to-serial conversion
• Strobe line for cascading
• High fan-out, low impedance outputs
• Typical propagation delay from data 14 ns
• Typical power dissipation 31 mW
• Supply Voltage 7V
• Operating temperature range 0°C to +70°C

Specification of 74153 Dual 1-of-4 Line Data Selector

• Typical average propagation delay from strobe 19 ns
• Typical average propagation delay from select 22 ns
• Input Voltage 7V
• Storage Temperature Range -65°C to +150°C

Applications of 74153 Dual 1-of-4 Line Data Selector

• Data multiplexing
• Digital signal processing
• Serial data transmission
• Electronic circuit design

Package Includes

• 1 X 74153 Dual 1-of-4 Line Data Selector
