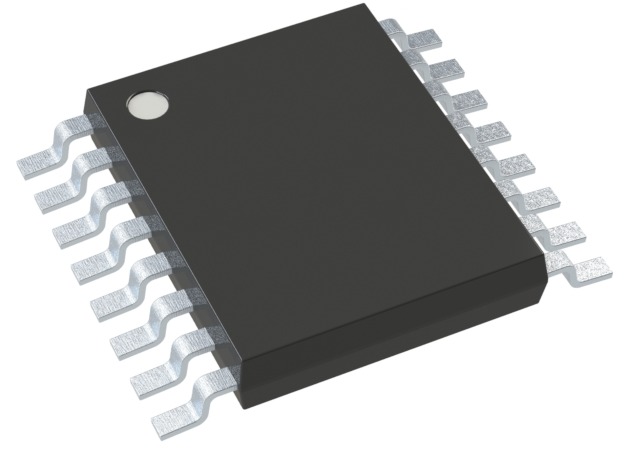

74HC259PW IC 8BIT ADDRESSABLE LATCH 16TSSOP

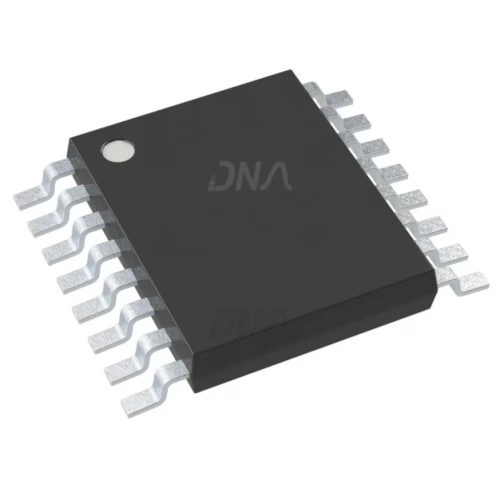

74HC259PW IC 8BIT ADDRESSABLE LATCH 16TSSOP

The 74HC259PW is an 8-bit addressable latch integrated circuit (IC) designed for general-purpose logic applications. It is a high-speed CMOS IC based on the 74HC logic family, combining low power consumption with fast switching. The IC is widely used in data storage, control circuits, and digital logic systems.

DNA solutions, Nashik has various types of Latch IC's. Check out our complete collection of Latch IC's.

• High-Speed Operation: Operates with a typical propagation delay of around 8 ns (at 5V)

• Wide Supply Voltage Range: Operates from 2V to 6V, suitable for various voltage levels in digital systems

• Low Power Consumption: Consumes minimal power, making it ideal for battery-powered and low-power devices

• Latch Enable (LE) Input: Controls whether data is stored in the latch

• Clear (CLR) Input: Allows resetting all latches to their initial state

• Compact Package: Comes in a 16-pin TSSOP package, making it suitable for space-constrained applications

Specifications of 74HC259PW IC 8BIT ADDRESSABLE LATCH 16TSSOP

• Logic Family: 74HC (High-Speed CMOS)

• Number of Latches: 8

• Package Type: 16-pin TSSOP (Thin Shrink Small Outline Package)

• Supply Voltage (Vcc): 2V to 6V

• Input Voltage Range: 0V to Vcc

• Output Voltage: 0V to Vcc

• Propagation Delay: ~8 ns at 5V

• Operating Temperature Range: -40°C to 125°C

Applications of 74HC259PW IC 8BIT ADDRESSABLE LATCH 16TSSOP

• Instrumentation and Measurement

• Multiplexing/De-Multiplexing

• Memory Address Decoding

• Bus-Oriented Systems

• Data Storage

• Control Systems
