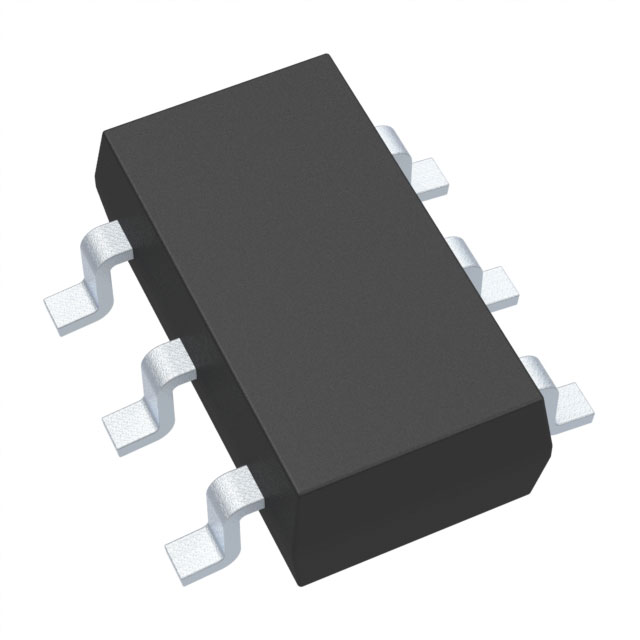

MCP4725AOT-E/CH Digital To Analog Converter SMD IC

MCP4725 Digital To Analog Converter SMD IC

MCP4725AOT-E/CH DAC with EEPROM, 12-bit resolution, and I2C interface.

The MCP4725 Digital To Analog Converter SMD IC is a single-channel, buffered voltage output DAC that offers 12-bit resolution. Its I2C interface allows for easy communication, making it ideal for battery-operated digital systems and microcontroller DAC expansion. The MCP4725 features an on-board precision output amplifier for rail-to-rail output, ensuring high accuracy in various applications.

With its low power consumption and EEPROM memory, the MCP4725 Digital To Analog Converter SMD IC retains configuration data even during power loss. This enhances its reliability in sensor calibration systems and audio signal generation. The device operates from a supply voltage of 2.7V to 5.5V, making it versatile for different projects.

Designed to perform in temperatures ranging from -40°C to 125°C, the MCP4725 is suitable for robust applications. Its fast settling time of just 6µs and a supply current of 210µA further emphasize its efficiency and performance. Explore the potential of the MCP4725 Digital To Analog Converter SMD IC for your electronic projects.

At DNA (retailer), we offer a range of ADC & DAC products including the reliable MCP4725. Explore our collection to find the right components for your needs. Check other ADC & DAC that we have in stock.

If you're searching for specific electronic parts, DNA is here to help. We can import components not in stock and support both retail and bulk orders. Consider related items like Transistors, Connectors, Analog ICs, Capacitors, Diodes, and Microcontrollers. Contact Us.

Features of MCP4725 Digital To Analog Converter SMD IC

• Buffered voltage output
• I2C interface
• EEPROM memory
• Low power consumption
• Rail-to-rail output
• Fast settling time of 6µs
• Operating voltage 2.7V to 5.5V
• Operating temperature -40°C to 125°C
• Supply current of 210µA

Specification of MCP4725 Digital To Analog Converter SMD IC

• Resolution: 12bit
• Data Interface: I2C
• Supply Voltage Range: 2.7V to 5.5V
• Case/Package: SOT 23
• No of Pins: 6
• Input Channel Type: Serial

Applications of MCP4725 Digital To Analog Converter SMD IC

• Battery-operated digital systems
• Microcontroller DAC expansion
• Sensor calibration systems
• Audio signal generation
• Data acquisition systems

Package Includes

• 1 X MCP4725 Digital To Analog Converter SMD IC
