Product Images are shown for illustrative purposes only and may differ from actual product.

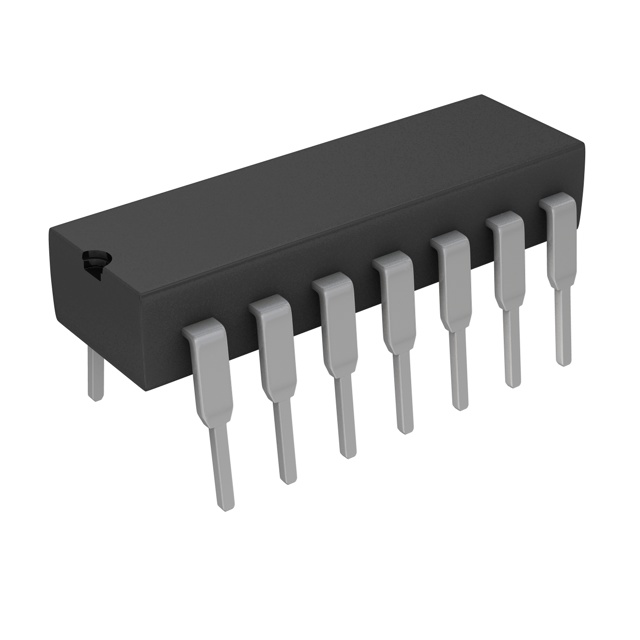

SN74HCT00N NAND GATE DIP IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 9173 | DAD418

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 24.66 (inc GST)
    Rs.20.90 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SN74HCT00N NAND Gate DIP IC

SN74HCT00N NAND Gate IC with 4 independent gates, TTL-compatible inputs, and low power dissipation.

The SN74HCT00N NAND Gate DIP IC is a high-speed CMOS logic device featuring four independent 2-input NAND gates. It operates on a single 5V supply and is designed for various digital logic circuits in computing, control, and timing applications. This IC provides low power consumption and reliable performance, making it an ideal choice for both educational and prototyping projects. The SN74HCT00N NAND Gate DIP IC is packaged in a breadboard-friendly 14-pin DIP format.
With TTL-compatible inputs and a propagation delay of approximately 11ns, the SN74HCT00N NAND Gate DIP IC ensures efficient signal processing for microcontroller interfaces, robotics, and automation systems. Its stable operation and low power dissipation contribute to its robustness in demanding applications. This IC is perfect for signal gating and timing systems that require precision and reliability.
Explore the versatility of the SN74HCT00N NAND Gate DIP IC for your next project. Whether for educational purposes or advanced robotics, this component is essential for effective logic design. Its wide supply voltage range and noise immunity make it suitable for a variety of applications.
Discover reliable solutions with DNA, the trusted retailer for the Brand SN74HCT00N in the 7400 Series IC's category. Explore our extensive range of 7400 Series IC's and enhance your projects. Check other "7400 Series IC's" that we have in stock.
If you are searching for more electronic components, DNA is here to help. Reach out if you cannot find specific parts. We can also import components if they are unavailable. We support both retail and bulk orders. Consider checking out related items like Humidity & Temperature Sensors, MOSFETs, IGBTs, Development Modules, Hongfa Relays, and Programmers. Contact Us.

Features of SN74HCT00N NAND Gate DIP IC

  • Quad 2-input NAND gates in one IC
  • High-speed CMOS with TTL inputs
  • Low power dissipation
  • Noise immunity and stable operation
  • Breadboard-friendly DIP package
  • Wide supply voltage range

Specification of SN74HCT00N NAND Gate DIP IC

  • Logic Type: Quad 2-Input NAND Gate
  • Number of Gates: 4
  • Supply Voltage: 4.5V to 5.5V
  • Input Compatibility: TTL-Compatible
  • Propagation Delay: ~11ns
  • Output Current: ±4 mA
  • Package Type: DIP

Applications of SN74HCT00N NAND Gate DIP IC

  • Microcontroller interface logic
  • Educational and prototyping projects
  • Robotics, automation, and sensor logic
  • Signal gating and timing systems

Package Includes

  • 1 X SN74HCT00N NAND Gate DIP IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
