Product Images are shown for illustrative purposes only and may differ from actual product.

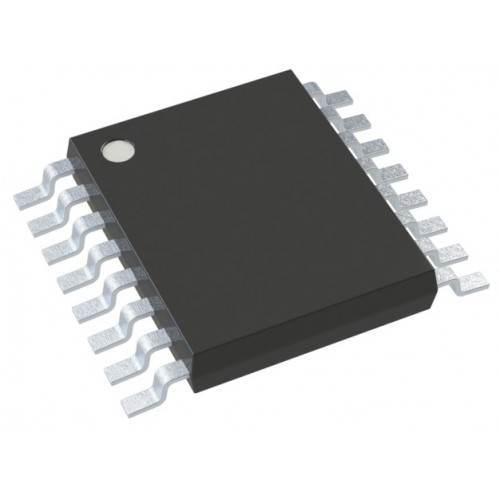

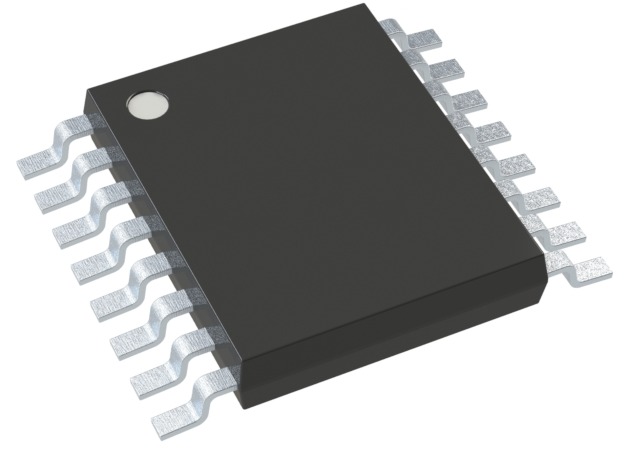

74HC259PW IC 8BIT ADDRESSABLE LATCH 16TSSOP

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-16

  • SKU: 8032 | DAH201

Availability: NotInStock priceValidUntil: 2026-12-16

  • Rs. 38.44 (inc GST)
    Rs.32.58 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

74HC259PW 8-Bit Addressable Latch IC

74HC259PW 8-Bit Addressable Latch IC for general-purpose logic applications with 8 ns delay and low power consumption.

The 74HC259PW 8-Bit Addressable Latch IC is a high-speed CMOS integrated circuit ideal for various digital logic applications. It operates within a supply voltage range of 2V to 6V and features a typical propagation delay of around 8 ns at 5V. This makes it suitable for data storage, control circuits, and multiplexing tasks in electronic systems. Its low power consumption is perfect for battery-operated devices.
With eight latches, the 74HC259PW provides efficient data handling. It includes a latch enable input for controlling data storage and a clear input for resetting latches. The compact 16-pin TSSOP package makes it easy to fit in space-constrained applications. This IC is widely used in instrumentation, memory address decoding, and bus-oriented systems.
For those looking to enhance their electronic projects, the 74HC259PW 8-Bit Addressable Latch IC is a reliable choice. It supports various voltage levels and ensures quick data processing, making it a valuable component for engineers and hobbyists alike.
At DNA, we offer a wide selection of 7400 Series IC's from trusted manufacturers. Explore the 7400 Series IC's category for reliable electronic components that meet your project needs. Check other 7400 Series IC's that we have in stock.
Are you searching for specific electronic components? At DNA, we can assist you in finding parts like Microcontrollers, Humidity & Temperature Sensors, IGBTs, and more. If you can't find what you need, we can import it for you. Contact Us.

Features of 74HC259PW 8-Bit Addressable Latch IC

  • High-speed operation
  • Wide supply voltage range
  • Low power consumption
  • Latch enable input
  • Clear input
  • Compact 16-pin TSSOP package

Specification of 74HC259PW 8-Bit Addressable Latch IC

  • Logic Family: 74HC (High-Speed CMOS)
  • Number of Latches: 8
  • Package Type: 16-pin TSSOP
  • Supply Voltage (Vcc): 2V to 6V
  • Input Voltage Range: 0V to Vcc
  • Output Voltage: 0V to Vcc
  • Propagation Delay: ~8 ns at 5V
  • Operating Temperature Range: -40°C to 125°C

Applications of 74HC259PW 8-Bit Addressable Latch IC

  • Instrumentation and Measurement
  • Multiplexing/De-Multiplexing
  • Memory Address Decoding
  • Bus-Oriented Systems
  • Data Storage
  • Control Systems

Package Includes

  • 1 X 74HC259PW 8-Bit Addressable Latch IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
