Single Beam Photoelectric Sensor 20 Meters

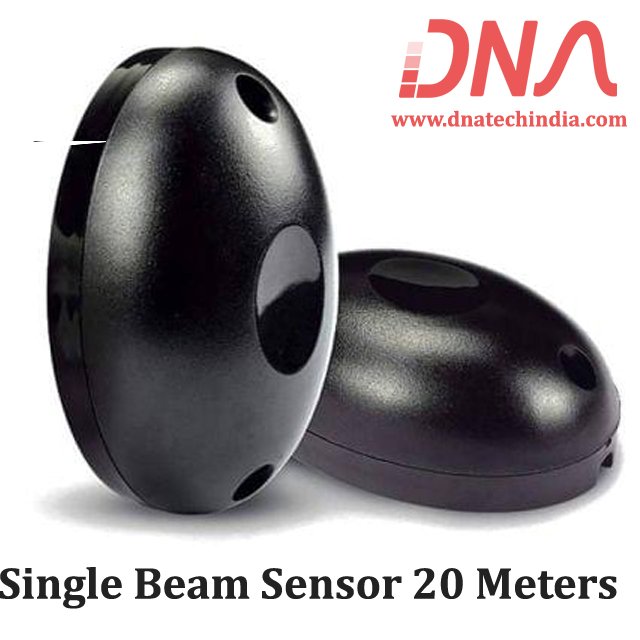

Single Beam Sensor 20 Meters (ABO-20L)

Single Beam Infrared Radiation Detector Automatic Door Light Sensor Burglar Alarm Infrared Alarm Detector

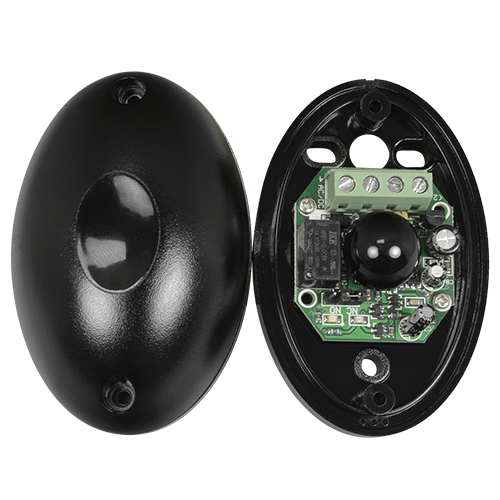

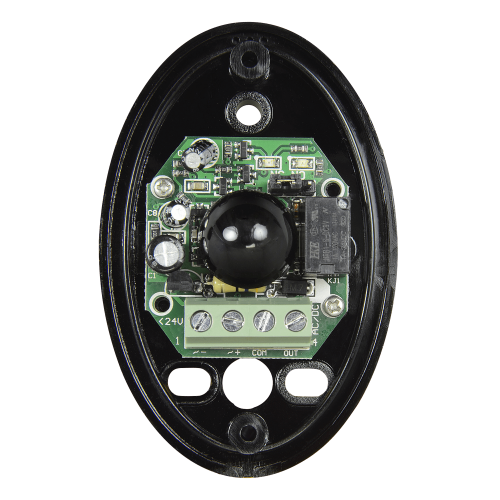

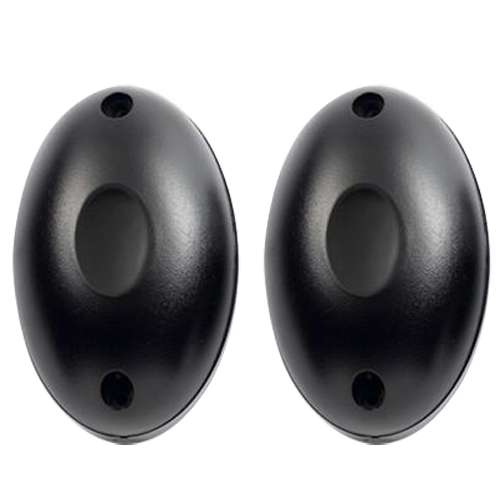

This is an infrared Photoelectric sensor kit, which can be used to automate the door opening and closing at any place. The ABO-20L Single Beam Detector Active Half Egg Beam sensor comes in two parts a transmitter and a receiver.

The ABO-20L sensor works on the principle of infrared radiation that means if the infrared beam from the transmitter is broken then the receiver will activate the output.

The infrared Photoelectric sensor new single beam infrared detector consists of a transmitter and a receiver which building an invisible fence. When an intruder breaks or passes through the invisible beams, alarm triggered. Meanwhile the detector will send a alarm signal to control host (which not included here). This active infrared motion detector is widely used for perimeter protection, great to install for security systems in factories, home yards, office buildings, schools, hospitals, prisons etc. When the next heavy rain, fog and other bad weather conditions, the distance will be reduced 30%

We have Various types of Proximity and Photoelectric Sensors . Check out our complete collection of Proximity and Photoelectric Sensors.

• Anti-glare up to 50,000 LUX, built-in automatic adjustment of strong light filtering system to avoid the influence of glare or car light
• The all-weather integrated structure of fully sealed rainproof (fog), dustproof (worm), etc. makes it work normally in harsh environments
• The detector will automatically increase the sensitivity when encountering dense fog or bad weather (AGC circuit)
• High level of RFI/EMI resistance
• Unique digital filter circuit design
• High-power transmitting device, photographic margin is up to 90% High-power infrared receiving tube, low-power processing technology Lightning protection circuit design
• With rain cover design
• C type relay output
• The beam interception period can be adjusted to make it more flexible and adaptable
• Professional anti-interference optical cover

Specification of ABO-20L Photoelectric Single Beam Sensor

• Detection Range :10 - 20 meter

• Voltage : DC 12-24 Volts

• Outdoor warning distance : 10 meter

• Indoor warning distance : 20 meter

• Induction speed : 50ms

• Alarm output-General : Normally closed and normally open (NC&NO) Contact capacity AV/DC 30V/0.5mA

• Alarm linkage : Yes

• Working voltage : DC 12-24 Volts

• Shell material : PC

• Product size : 7.6x4.9x2.9cm

Package Includes

• 1 X Photoelectric transmmiter

• 1 x Photoelectric receiver

• 1 x English user manual
