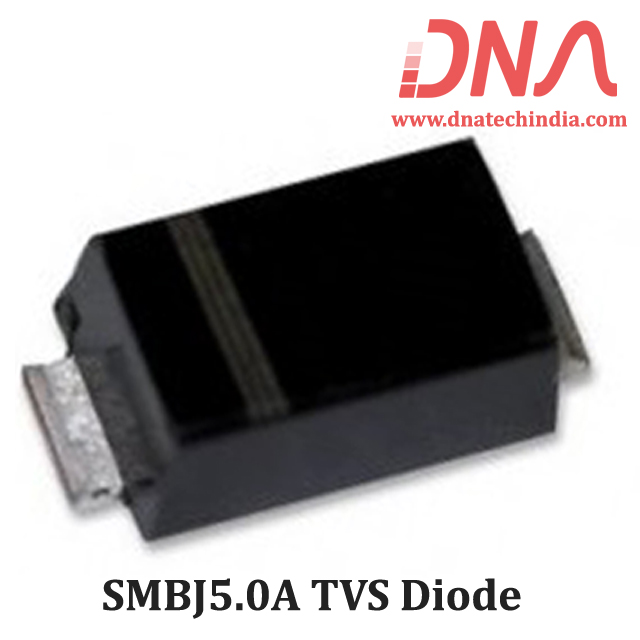

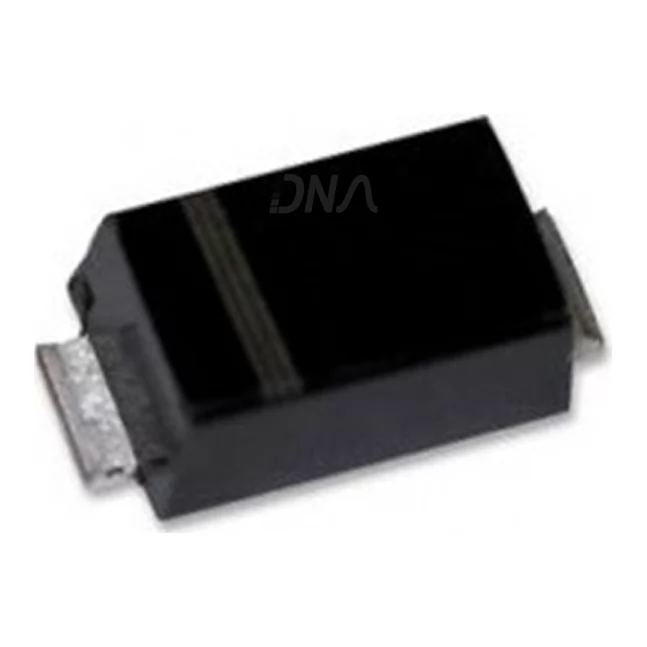

SMBJ5.0A TVS Diode

  • Stock: 75

    Availability: InStock priceValidUntil: 2026-12-18

  • SKU: 2522 | DAC704

Availability: InStock priceValidUntil: 2026-12-18

  • Rs. 12.98 (inc GST)
    Rs.11.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SMBJ5.0A Transient Voltage Suppressor Diode

SMBJ5.0A TVS Diode, 5V, 600W, excellent clamping capability.

The SMBJ5.0A Transient Voltage Suppressor Diode protects sensitive electronic components from voltage spikes. This TVS diode operates by shunting excess current when over-voltage conditions occur, ensuring reliable performance in various applications. With a breakdown voltage of 6.4V min and a maximum peak pulse surge current of 65.2A, the SMBJ5.0A provides robust protection for your circuits.
The SMBJ5.0A TVS diode features a low profile package and built-in strain relief, making it suitable for space-constrained designs. Its fast response time of less than 1.0ps ensures that it reacts quickly to voltage surges, safeguarding your devices effectively. Ideal for use in consumer electronics, automotive applications, and industrial equipment, this diode is essential for maintaining circuit integrity.
For anyone needing reliable transient voltage suppression, the General Semiconductor SMBJ5.0A is an excellent choice. Explore our collection of diodes to find the right components for your projects and ensure your designs are well-protected against voltage transients.
At DNA, we offer a wide range of General Semiconductor products in the Diodes & Transistors category. Explore our collection and find the right diode to protect your electronic devices. Check other "Diodes & Transistors" that we have in stock.
If you're searching for specific electronic components, DNA is here to help. We can import parts if you can't find them, and we support both retail and bulk orders. Explore related items like Transistors, Inductors, Power Supplies, Hongfa Relays, and Development Boards. Contact Us

Features of SMBJ5.0A Transient Voltage Suppressor Diode

  • Flammability Rating 94V-0
  • Low Profile Package
  • Built-in Strain Relief
  • Glass passivated Junction
  • Low Incremental Surge Resistance
  • Excellent Clamping Capability
  • Fast Response Time: Less than 1.0ps

Specification of SMBJ5.0A Transient Voltage Suppressor Diode

  • Breakdown Voltage @ 10mA: 6.4V min / 7.07V max
  • Stand-off Voltage: 5.0 Volts
  • Maximum Reverse Leakage @ 5.0V: 800uA
  • Maximum Peak Pulse Surge Current: 65.2 Ampere
  • Maximum Clamping Voltage @ 65.2A: 9.2 Volts
  • Peak pulse power dissipation: 600W min
  • Operating temperature range: -55C to 150C

Applications of SMBJ5.0A Transient Voltage Suppressor Diode

  • Consumer electronics
  • Automotive applications
  • Industrial equipment
  • Circuit protection
  • Voltage spike suppression

Related Links for SMBJ5.0A Transient Voltage Suppressor Diode

Package Includes

  • 1 X SMBJ5.0A Transient Voltage Suppressor Diode
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
