• SMBJ5.0A TVS Diode

Product Images are shown for illustrative purposes only and may differ from actual product.

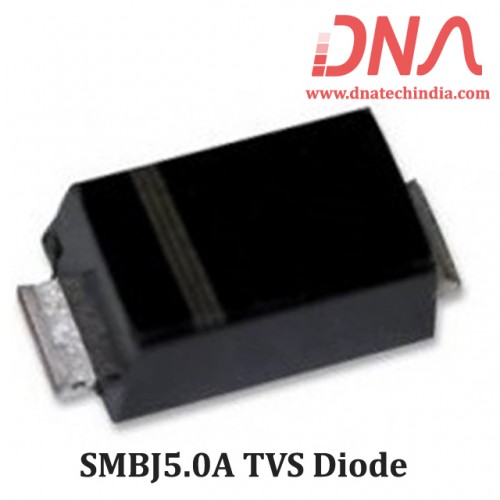

SMBJ5.0A TVS Diode

  • Stock: 14
  • SKU: 2522 | DAC704

Availability: InStock priceValidUntil: 2025-09-23

  • Rs. 12.98 (inc GST)
    Rs.11.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SMBJ5.0A Transient Voltage Suppressor Diode

SMBJ5.0A Transient Voltage Suppressor Diode

A transient voltage suppressor or TVS is a general classification of an array of devices that are designed to react to sudden or momentary over voltage conditions. The SMBJ5.0A TVS diode operates by shunting excess current when the induced voltage exceeds the avalanche breakdown potential. It is a clamping device, suppressing all over voltages above its breakdown voltage. It automatically resets when the over voltage goes away, but absorbs much more of the transient energy internally than a similarly rated crowbar device.

We have various types of Diode. Check our complete collection of Diode

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SMBJ 5.0A Transient Voltage Suppressor Diode

  • Flammability Rating 94V-0
  • Low Profile Package
  • Built-in Strain Relief
  • Glass passivated Junction
  • Low Incremental Surge Resistance
  • Excellent Clamping Capability
  • Fast Response Time : Less then 1.0ps from 0V to VBR

Characteristics of SMBJ5.0A Transient Voltage Suppressor Diode

  • Breakdown Voltage @ 10mA : 6.4V min. / 7.07V max.
  • Stand-off Voltage : 5.0 Volts
  • Maximum Reverse Leakage @ 5.0V : 800uA
  • Maximum Peak Pulse Surge Current : 65.2 Ampere
  • Maximum Clamping Voltage @ 65.2A : 9.2 Volts

Maximum Ratings of SMBJ5.0A TVS Diode

  • Peak pulse power dissipation with a 10/1000ms waveform : 600W min.
  • Peak forward surge current 8.3ms single half sine-wave superimposed on rated load : 100A
  • Maximum instantaneous forward voltage at 50A : 3.5V
  • Operating junction and storage temperature range : -55C to 150C

Specification of SMBJ5.0A TVS Diode

  • Manufacturer : General Semiconductor
  • Part Number : SMBJ5.0A
  • Voltage : 5
  • Watts : 600
  • Package : DO215AA
  • Lead/Terminal Type : J-Bend
  • Number Leads/Terminals : 2

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
