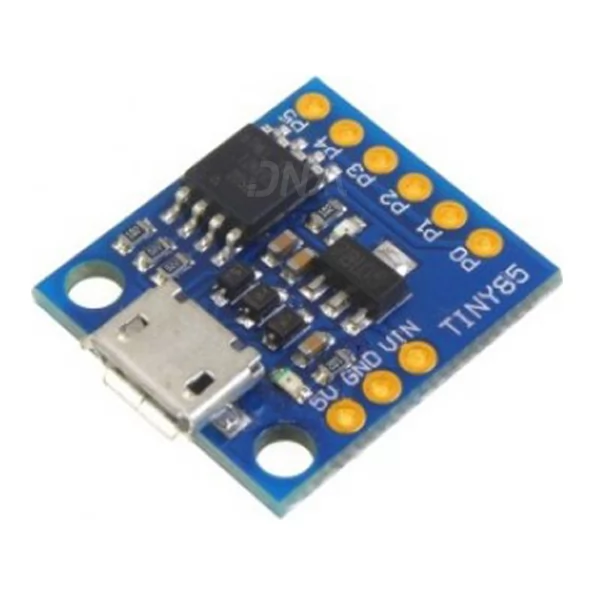

TINY85 Development Board
- Stock: 2 - 3 Days
- SKU: 532 |
-
Rs. 354.00 (inc GST)
Rs.300.00 + GSTQty :
| Also Available: PMS5003 PM2.5 AIR QUALITY SENSOR BY PLANTOWER in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
TINY85 Development Board
This tiny and low cost AVR development board is great for compact projects or projects that only requires a few IO pins.
Based on the 8 pin Atmel ATTiny85 processor it allows for an incredibly small form factor. It also has the advantage of including a micro usb interface that allows the processor to be programmed via a USB power without the need for any download adaptors. Additionally the board also comes pre-programmed with the Arduino bootloader and test blink sketch. Please note that to use with the Arduino development environment you will need a modified version of this software.
This development board is based on the DigiStump Digispark reference design and is released under the Creative Commons Attribution-ShareAlike 3.0 License available here:
http://creativecommons.org/licenses/by-sa/3.0/
We have Various sizes of Arduino Board. Check out our complete collection of Arduino Board.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specifications of Tiny85 Board
- 8K Flash memory
- 6x Digital pins P0 - P5 (two shared for USB communication)
- 4x ADC pins (shared with digital pins)
- SPI interface (shared with digital pins)
- I2C interface (shared with digital pins)
- 3x PWM outputs (shared with digital pins)
- Can be powered via USB, 5V, or VIN (7-12V) inputs
- On board 5V 0.5A regulator for external supply
- Power LED and user controlled LED
Pinout of Tiny85 Board
- 5V......5V out when supplied by USB or Vin / or 5V supply in
- GND...0V
- VIN.....External supply in (7-12V)
- P0......AREF / SDA
- P1......PWM / D0
- P2......D1 / ADC1 / SCK
- P3......D2 / ADC2 / USB
- P4......D3 / PWM / ADC3 / USB
- P5......D4 / ADC4
