EKG-EMG Shield

  • Stock: 1
  • SKU: 1000 | DAB352
  • Rs. 4,602.00 (inc GST)
    Rs.3,900.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

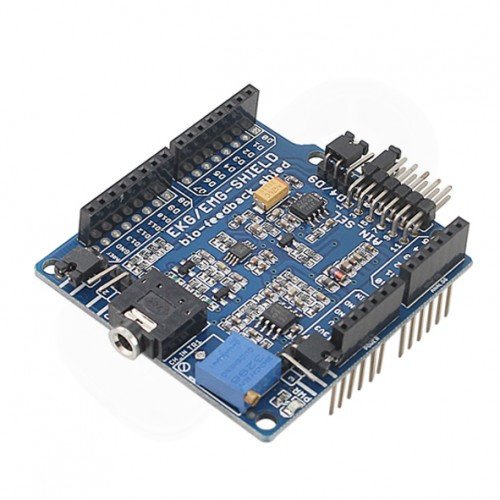

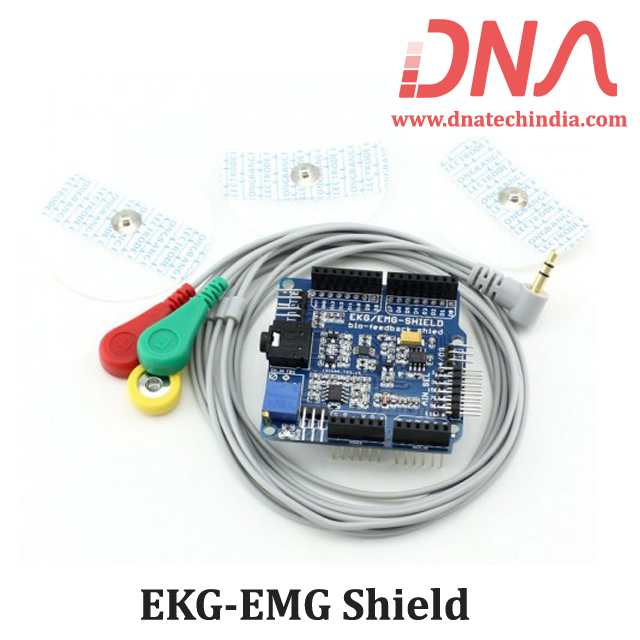

EKG-EMG Shield

This is an EKG-EMG shield which allows for Arduino like boards to capture Electrocardiography Electromiography signals.

The shield opens new possibilities to experiment with bio feedback. You can monitor your heartbeat and log your pulse, recognize gestures by monitoring and analyze the muscle activity as it is done in this project.

We have Various sizes of Arduino Sheild. Check out our complete collection of Arduino Sheild.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of EKG/EMG Shield

  • Stackable headers up to 6 channels may be stacked and wired to A0-A6 analogue inputs

  • Calibration signal generation by D4/D9 digital output

  • Precise Trimmer potentiometer for calibration (all boards are shipped completely assembled, tested and calibrated so that you don't have to do this unless you want to see how things works)

  • Input connector for normal or Active electrodes

  • Works with both 3.3V and 5V for Arduino boards
