FTDI VNC2 DEBUG MODULE VNC2 Debug and Programming Module

  • Stock: 2

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: FTDI
  • SKU: 10807 | DAK036

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 2,567.68 (inc GST)
    Rs.2,176.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

FTDI VNC2 DEBUG MODULE VNC2 Debug and Programming Module

VNC2 DEBUG MODULE supports VNC2 programming and debugging, with USB 2.0 Full Speed, onboard FT232R conversion and a keyed 6-way, 2 mm debug connector.

The FTDI VNC2 DEBUG MODULE links a PC running Vinculum-II IDE software to the debug interface on a VNC2 device. It supports VNC2 firmware programming and debugging through USB, with an onboard FT232R handling USB-to-serial conversion.

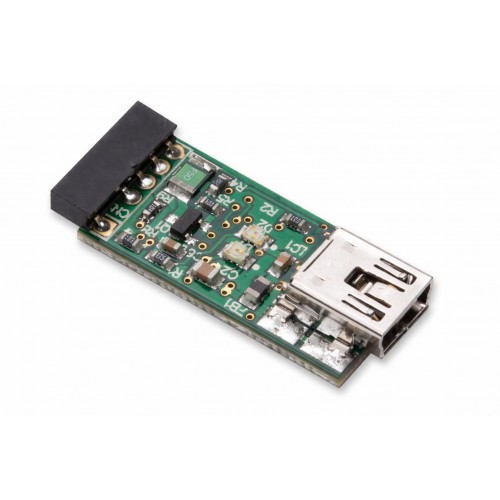

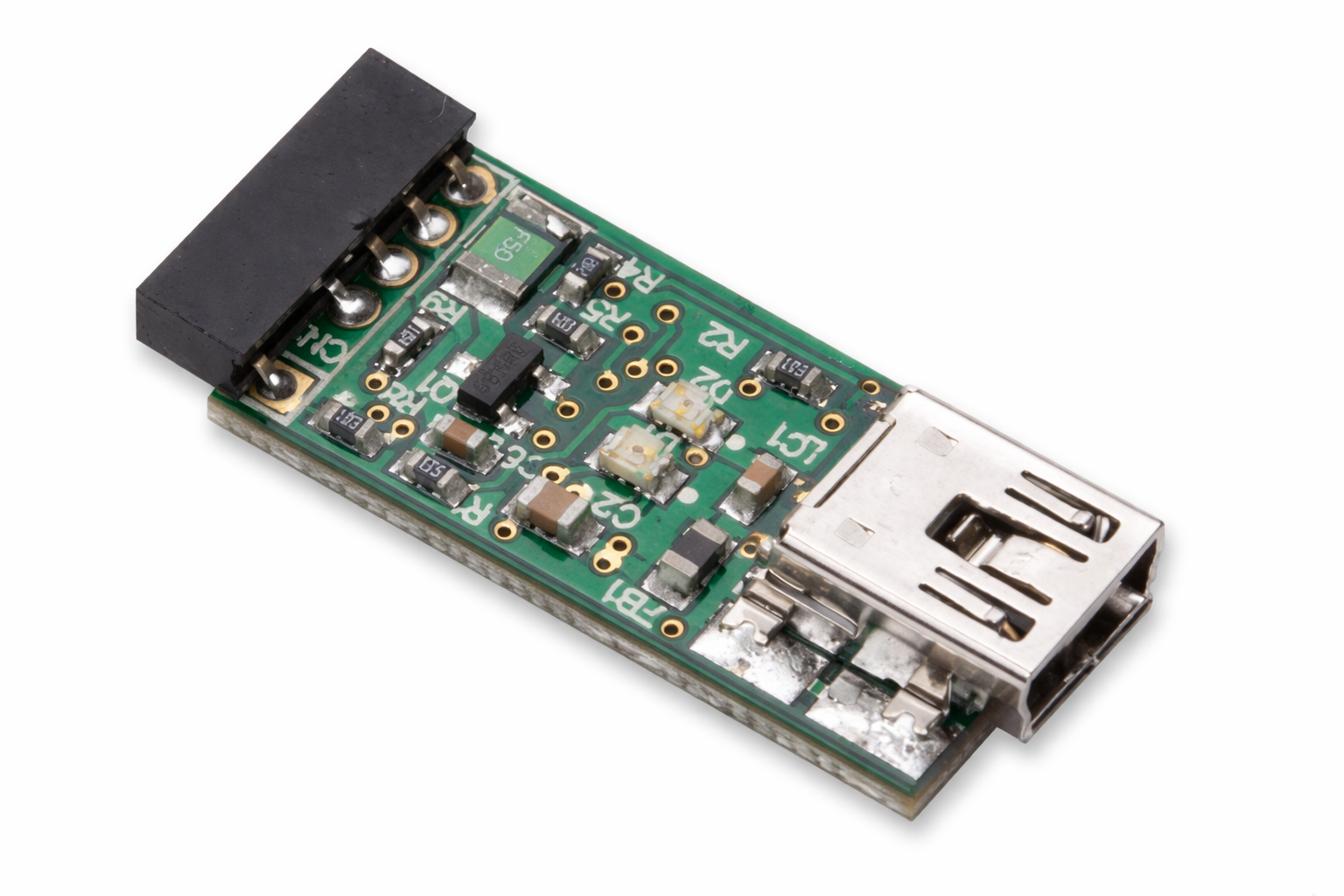

The miniature board uses a Mini-B USB connector for the PC and a keyed 6-way connector for compatible VNC2 hardware. This keyed connection helps align the debug signals during setup. USB power keeps the module simple to connect, while power and traffic LEDs show activity. It also provides a switched VCC output for a connected board or circuit.
Use this module with V2DIPx-x development modules or custom VNC2-based hardware that has a matching connector. It supports embedded firmware development by helping engineers load and debug code on VNC2 devices.
DNA stocks FTDI tools for VNC2 development and debugging. Browse our Programmers category to find modules for your engineering work. Check other Programmers that we have in stock
DNA supports Indian electronics buyers with retail and bulk orders, plus import support for hard-to-find parts. Contact us about programmers, inductors, diodes, HMI displays, SMPS units or connectors. Contact Us

Features of FTDI VNC2 DEBUG MODULE VNC2 Debug and Programming Module

  • Onboard FT232R converts USB to serial for the VNC2 debug port
  • Supports VNC2 firmware programming and debugging
  • USB-powered design
  • Power and transmit/receive activity LEDs
  • Switched VCC output for a connected V2DIP module or external circuit
  • Low USB bandwidth use

Specifications of FTDI VNC2 DEBUG MODULE VNC2 Debug and Programming Module

  • Debug interface signal levels: 3.3 V on connector pins 1 (Debug IF), 4 (RESET#) and 5 (PROG#)
  • VCC output voltage: 4.25 V minimum, 5.0 V typical, 5.25 V maximum, dependent on the USB port connected to the module
  • VCC output current: 400 mA maximum, switched off during USB suspend mode
  • Operating temperature: -40 °C to +85 °C
  • USB connector: Mini-B
  • USB interface: USB 2.0 Full Speed
  • Debug connector: 6-way, keyed, 2 mm pitch female connector
  • Module dimensions: 28.00 mm long × 12.8 mm wide × 6.4 mm high

Applications of FTDI VNC2 DEBUG MODULE VNC2 Debug and Programming Module

  • Programming VNC2 devices on V2DIPx-x development modules or custom VNC2-based hardware
  • Debugging firmware running on a VNC2 device

Related Links for FTDI VNC2 DEBUG MODULE VNC2 Debug and Programming Module

Package Includes

  • 1 X FTDI VNC2 DEBUG MODULE VNC2 Debug and Programming Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
