IRF510 N Channel Power MOSFET

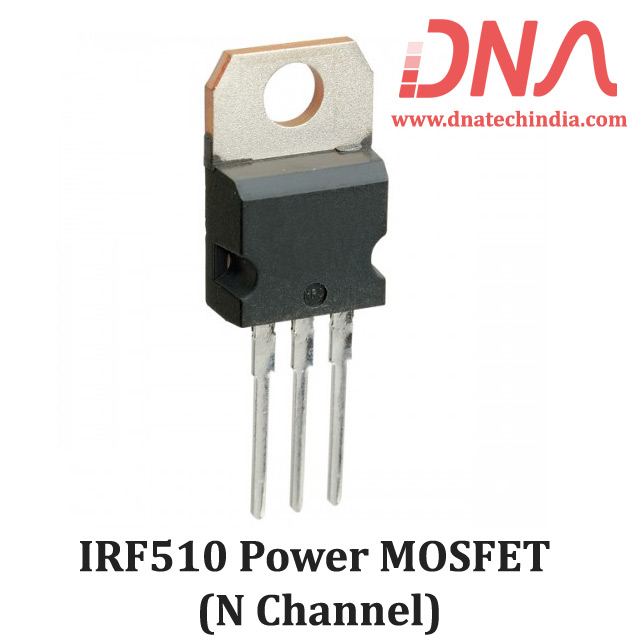

IRF510 N Channel 100 volts, 5.6 Ampere Power MOSFET in TO220 Package

IRF510 Power MOSFET is a third generation MOSFET that provide thedesigner with the best combination of fast switching,ruggedized device design, low on-resistance andcost-effectiveness.

IRF510 N Channel Power MOSFET comes in TO220 package. The TO-220AB package is universally preferred for allcommercial-industrial applications at power dissipationlevels to approximately 50 Watt. The low thermal resistanceand low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.

Features of IRF510 Power MOSFET

• Dynamic dV/dt rating

• Repetitive avalanche rated

• 175 °C operating temperature

• Fast switching

• Ease of paralleling

• Simple drive requirements

Ratings of IRF510 N-Channel Power MOSFET

• Drain-Source Voltage (VDS): 100 Volts

• Gate-Source Voltage (VGS): ± 20 Volts

• Continuous Drain Current (VGS at 10 V TC = 25 °C): 5.6 Ampere

• Continuous Drain Current (VGS at 10 V TC = 100 °C): 4.0 Ampere

• Pulsed Drain Current (IDM): 20 Ampere

• Maximum Power Dissipation TC = 43 Watt

• Peak Diode Recovery dV/dt c dV/dt 5.5 V/ns

• Operating Junction and Storage Temperature Range: -55 to +175
