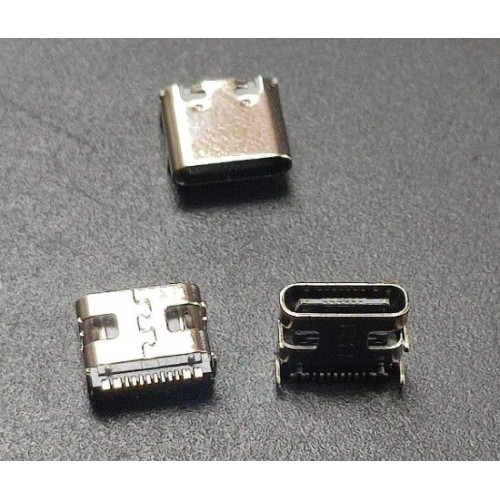

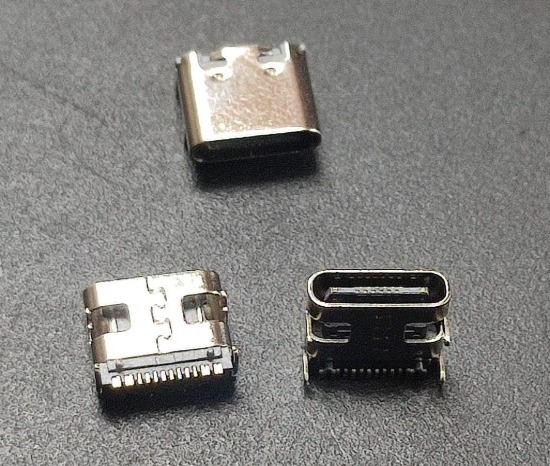

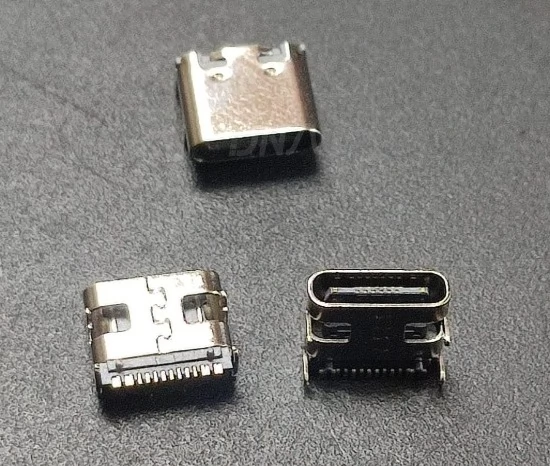

USB Type-C Connector Female Socket SMD

USB Type-C Connector Female Socket SMD

The USB Type-C Female Connector is a versatile, compact, and reversible connector designed for modern electronic devices. It supports high-speed data transmission, fast charging, and video/audio transmission. Its small form factor and reversible design make it user-friendly and ideal for a wide range of applications.

DNA solutions, Nashik has various types of USB Connectors. Check out our complete collection of USB Connectors.

• Compact Design: Slim and lightweight, ideal for space-constrained applications

• Reversible Orientation: The connector is symmetrical, allowing for plug-in from either side

• High-Speed Data Transfer: Supports USB 3.1/3.2/4.0 standards for data rates up to 40 Gbps (depending on the version)

• Power Delivery: Compatible with USB Power Delivery (USB-PD) for fast charging up to 100W (20V/5A)

• Durability: Rated for up to 10,000 plug-and-unplug cycles

Specifications of USB Type-C Connector Female Socket SMD

• Contacts: Gold-plated for corrosion resistance and improved conductivity

• Housing: High-temperature thermoplastic (UL94V-0)

• Shielding: Stainless steel or copper alloy

• Voltage Rating: 20V max

• Current Rating: 5A max

• Contact Resistance: ≤ 30 mΩ

• Insulation Resistance: ≥ 100 MΩ

• USB 3.1, 3.2, and 4.0

• IEC 61000-4-2 (ESD)

Applications of USB Type-C Connector Female Socket SMD

• Consumer Electronics

• Industrial Equipment

• Automotive

• Audio/Video Devices

• Wearables and IoT Devices

Package Includes

      1 x USB Type-C Connector Female Socket SMD
