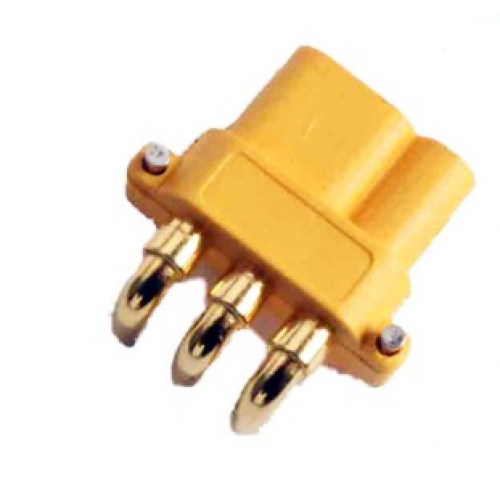

MR30PW-M M30 (90 degree) Female Connector

High Current MR30PW-M M30 (90°) Female Connector

MR30PW-M connector rated for 15A and 500V, ideal for high-current applications with durable gold-plated contacts.

The High Current MR30PW-M M30 (90°) Female Connector is engineered for high-current applications, ensuring a reliable connection for industrial and RC battery systems. This connector features a robust polyamide body and gold-plated brass contacts, providing low resistance and durability. Rated for 15A and 500V, it operates efficiently in demanding environments.

Designed for ease of use, the High Current MR30PW-M M30 (90°) Female Connector supports repeated mating cycles, ensuring longevity and performance. Its right-angle design allows for simple installation in confined spaces while maintaining a secure electrical connection. It is ideal for RC LiPo battery connections and industrial panel wiring.

Explore the advantages of the High Current MR30PW-M M30 (90°) Female Connector for power distribution in battery packs and PCB-mounted systems. This connector is a reliable choice for engineers and hobbyists seeking quality in their electronic projects. Check other connectors available for your needs.

At DNA Solutions, we offer a wide range of connectors and cables from trusted manufacturers. Explore our collection of Connectors and Cables to find the right fit for your needs. Check other "Connectors and Cables" that we have in stock.

If you're looking for specific electronic components, we can assist you. From Super Capacitors to HMI Displays, we support retail and bulk purchases. If you cannot find what you need, reach out to us. We can also import parts for you. Contact Us.

Features of High Current MR30PW-M M30 (90°) Female Connector

• M30 series right-angle female connector
• Rated current: 15 A
• Rated voltage: 500 V
• Gold-plated brass contacts for low resistance
• Insulating polyamide body, UL94 V-0 rated
• Durable for repeated mating cycles (≥ 1000)

Specification of High Current MR30PW-M M30 (90°) Female Connector

• Connector Type: Female, right-angle, PCB/panel mount
• Pins: 3
• Current Rating: 15 A (30 A pulse)
• Voltage Rating: 500 V DC
• Operating Temperature: –20 °C to +120 °C

Applications of High Current MR30PW-M M30 (90°) Female Connector

• RC LiPo battery and ESC connections
• Industrial panel wiring and power connections
• Power distribution in battery packs
• PCB-mounted power systems

Package Includes

• 1 X MR30PW-M M30 (90°) Female Connector
