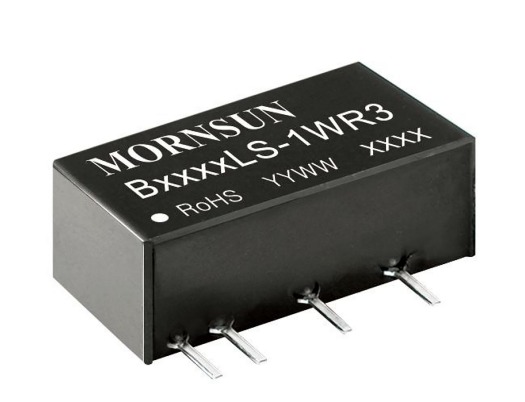

MORNSUN B1212LS-1WR3 1 W Isolated DC-DC Converter Module

MORNSUN B1212LS-1WR3 is a 1 W isolated DC-DC converter with a 10.8–13.2 VDC input range and an unregulated 12 VDC single output.

The MORNSUN B1212LS-1WR3 is a 1 W isolated DC-DC converter module. It converts a nominal 12 VDC input to one 12 VDC output. The output is unregulated, so it suits circuits designed to accept this type of supply. Its single-output isolated power conversion supports power stages where the input and output need electrical separation.
The module has continuous short-circuit protection with self-recovery, so it can resume operation after a fault clears. Its operating range of -40°C to +105°C supports use across varied equipment environments. Derating applies at 100°C and above with a 12 VDC input. The small case supports space-conscious PCB designs.
Use this isolated 12 V converter in distributed power supply systems, pure digital and low-frequency analog circuits, relay-driven circuits, and data switching circuits.
Explore MORNSUN power conversion products at DNA. Find isolated modules for electronics projects and system designs in our range of DC to DC Converter Modules. Check other DC to DC Converter Modules that we have in stock
If you cannot find the part you need, contact DNA for import support and retail or bulk orders in India. You can also ask about Development boards, IGBT, Transistor, or DC to DC Converter IC. Contact Us

Features of MORNSUN B1212LS-1WR3 1 W Isolated DC-DC Converter Module

  • Single isolated output
  • Continuous short-circuit protection with self-recovery
  • Free-air convection cooling
  • Flame-retardant, heat-resistant case

Specifications of MORNSUN B1212LS-1WR3 1 W Isolated DC-DC Converter Module

  • Nominal input voltage: 12 VDC
  • Input voltage range: 10.8–13.2 VDC
  • Output voltage: 12 VDC, single unregulated output
  • Output current: 83 mA maximum, 9 mA minimum
  • Full-load efficiency: 76% minimum, 80% typical
  • Input-to-output isolation test voltage: 1500 VDC for 1 minute, leakage current ≤1 mA
  • Operating temperature: -40°C to +105°C, with derating at 100°C and above for 12 VDC input

Applications of MORNSUN B1212LS-1WR3 1 W Isolated DC-DC Converter Module

  • Distributed power supply systems requiring an isolated voltage
  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven and data switching circuits

Related Links for MORNSUN B1212LS-1WR3 1 W Isolated DC-DC Converter Module

Package Includes

  • 1 X MORNSUN B1212LS-1WR3 1 W Isolated DC-DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
