Product Images are shown for illustrative purposes only and may differ from actual product.

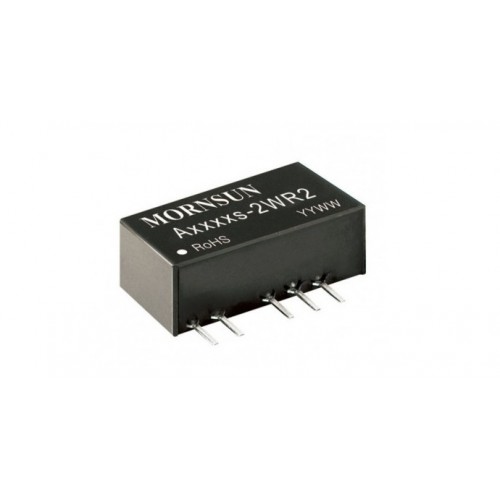

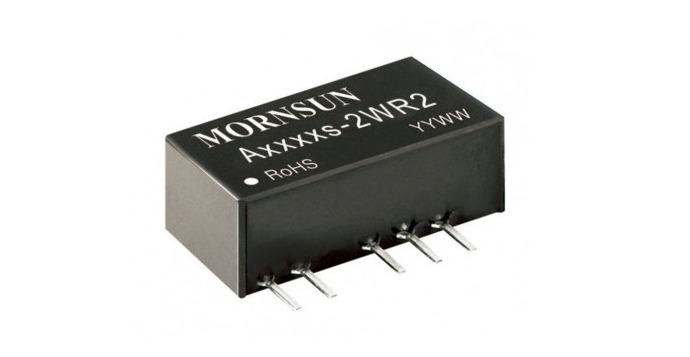

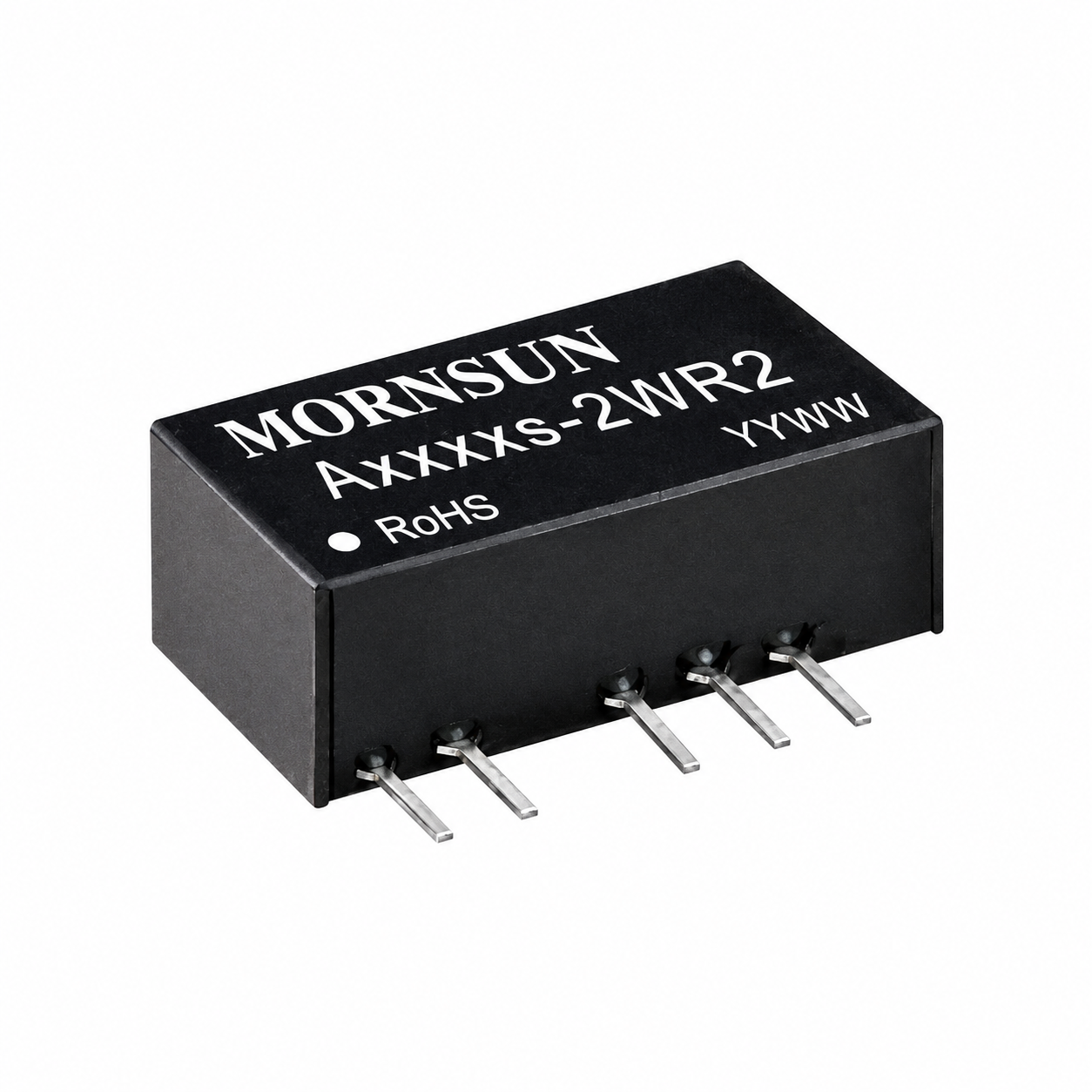

A2409S-2WR2 Mornsun DC-DC Converter
- Stock: 5 InStock
- SKU: 3962 | DAG662
-
Rs.
424.80 (inc GST)
Rs.360.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
A2409S-2WR2 Mornsun DC-DC Converter
A2409S-2WR2 Mornsun DC To DC Converer
2W isolated DC-DC converter Fixed input voltage, unregulated dual/ single output A_S-2WR3 & B_S-2WR3 series are specially designed for applications where an (two) isolated voltage is required in a distributed power supply system. They are suitable for:
1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less.
2. An input to output isolation voltage of up to 1500VDC is necessary.
3. The requirement for a tight output regulation is not as strict.
DNA solutions, Nashik has various types of Mornsun's. Check out our complete collection of Mornsun's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of A2409S-2WR2 Mornsun DC-DC Converter
- Continuous short-circuit protection
- No-load input current as low as 8mA
- Operating ambient temperature range: -40℃to +105℃
- High efficiency upto 86%
- High power density
- I/O isolation test voltage 1.5kVDC
- Industry standard pin-out
Specification of A2409S-2WR2 Mornsun DC-DC Converter
- Input Voltage Range: 21.6V to 26.4V DC
- Nominal Input Voltage: 24V DC
- Output Voltage: 9V DC
- Output Current: 222mA (max)
- Output Power: 2W
- Output Voltage Accuracy: ±2%
Package Includes
1 x A2409S-2WR2 Mornsun DC-DC Converter
