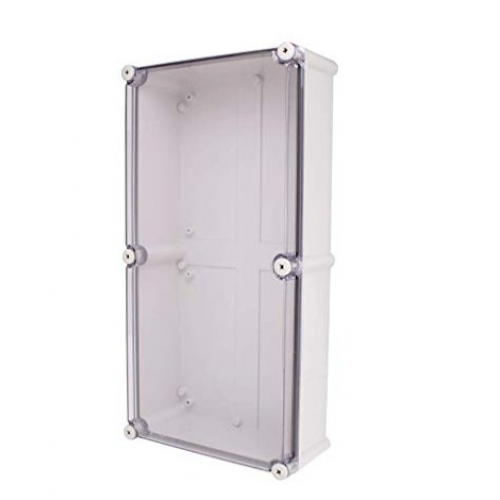

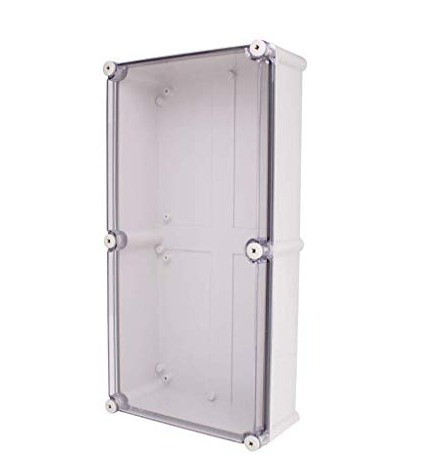

ABS 80x160x55 mm IP65 Enclosure Transparent

ABS 80x160x55 mm IP65 Enclosure Transparent

This ABS enclosure (80x160x55 mm) with an IP65 protection rating is designed to house and protect sensitive electronic and electrical components in harsh environments. The transparent polycarbonate lid allows for visual inspection of internal components without opening the box, making it ideal for monitoring indicators or displays. The base is made of high-impact ABS plastic, providing excellent mechanical strength and insulation. It features a silicone or neoprene gasket to ensure dust-tight and water-resistant sealing, suitable for both indoor and outdoor use.

DNA solutions, Nashik has various types of IP65 Enclosure's. Check out our complete collection of IP65 Enclosure's

• IP65 Rated: Provides excellent protection against dust and low-pressure water jets from any direction.

• Transparent Polycarbonate Lid: Allows visual monitoring of internal components without opening the enclosure.

• Durable ABS Construction: High mechanical strength, impact resistance, and electrical insulation.

• Sealed with Gasket: Neoprene or silicone gasket ensures waterproof and dustproof sealing.

• Corrosion-Resistant Screws: Stainless steel cover screws for long-lasting outdoor performance.

• Easy Installation: Internal mounting bosses for PCBs, terminal blocks, or DIN rail.

• Compact Size: Ideal for small electronics, sensor nodes, or control circuits.

Specifications of ABS 80x160x55 mm IP65 Enclosure Transparent

• Material-Base: ABS (Acrylonitrile Butadiene Styrene)

• Material-Lid: Transparent Polycarbonate (PC)

• IP Rating: IP65 (dust-tight, water jet resistant)

• Color: Grey base, transparent lid

• Lid Type: Screw-fixed, clear

• Seal Type: Neoprene or silicone gasket

• Operating Temperature: -20°C to +80°C

• Mounting Options: Wall mount or DIN rail (with accessories)

• Screw Type: Stainless steel, non-corrosive

Applications of ABS 80x160x55 mm IP65 Enclosure Transparent)

• Sensor and controller housings

• Monitoring systems

• Outdoor terminals and wireless devices

• Junction boxes for automation and control panels

• Solar and energy monitoring systems

Package Includes

      1 x ABS 80x160x55 mm IP65 Enclosure Transparent
