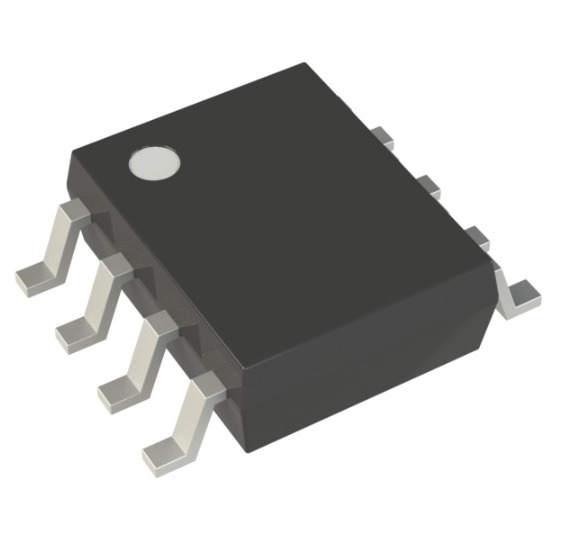

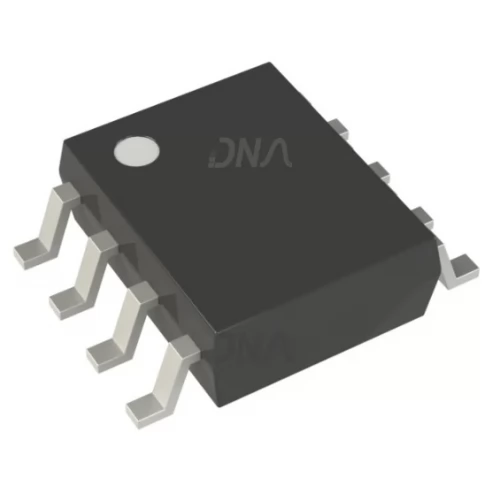

• ACPL-072L-000E  OPTOISO 3.75KV PUSH PULL 8SO

Product Images are shown for illustrative purposes only and may differ from actual product.

ACPL-072L-000E OPTOISO 3.75KV PUSH PULL 8SO

  • Stock: 6
  • SKU: 8114 | DAH101

Availability: InStock priceValidUntil: 2025-09-23

  • Rs. 481.16 (inc GST)
    Rs.407.77 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ACPL-072L-000E  OPTOISO 3.75KV PUSH PULL 8SO

ACPL-072L-000E  OPTOISO 3.75KV PUSH PULL 8SO

The ACPL-072L-000E is a high-speed, low-power digital optoisolator that uses a GaAsP LED as the light source and an integrated photodetector IC for signal detection. It is designed to isolate logic signals in applications requiring high data rates and electrical noise immunity. The device is housed in an 8-pin Small Outline (SO-8) package, making it compact and suitable for PCB applications.

DNA solutions, Nashik has various types of Optoisolators. Check out our complete collection of Optoisolator.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ACPL-072L-000E  OPTOISO 3.75KV PUSH PULL 8SO

  • High Isolation Voltage: Withstands up to 3750 Vrms of isolation voltage, ensuring robust electrical separation between input and output
  • Push-Pull Output: Provides a push-pull output for better signal integrity and faster switching performance
  • Low Power Consumption: Suitable for power-sensitive applications due to its efficient design
  • High Speed: Supports data rates up to 25 Mbps, ideal for fast communication protocols

Specifications of ACPL-072L-000E  OPTOISO 3.75KV PUSH PULL 8SO

  • Isolation Voltage: 3750 Vrms
  • Data Rate: Up to 25 Mbps
  • Propagation Delay: Typical: 40 ns
  • Pulse Width Distortion: Maximum: 6 ns
  • Operating Voltage: 3.0V to 5.5V
  • Input Current: Maximum: 1.6 mA
  • Operating Temperature: -40°C to +105°C
  • Package Type: SO-8 (Surface Mount)

Applications of ACPL-072L-000E  OPTOISO 3.75KV PUSH PULL 8SO

  • Industrial Automation
  • Data Communication
  • Power Electronics
  • Microcontroller Interfaces
  • Switching Power Supplies

    Package Includes

          1 x ACPL-072L-000E  OPTOISO 3.75KV PUSH PULL 8SO

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
