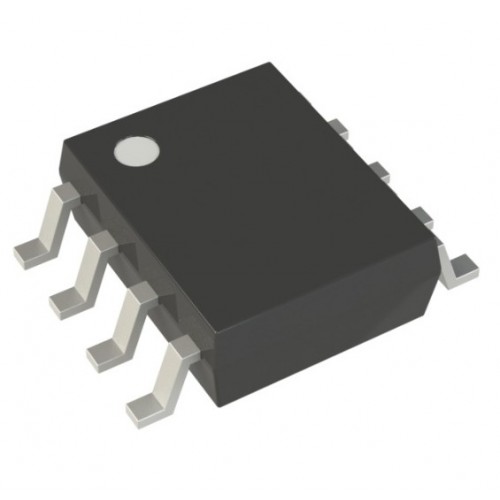

Product Images are shown for illustrative purposes only and may differ from actual product.

ACPL-072L-000E OPTOISO 3.75KV PUSH PULL 8SO

Write a review | 0 reviews

Stock: 6
Availability: InStock priceValidUntil: 2026-12-12
SKU: 8114 | DAH101

Rs. 481.17 (inc GST)
Rs.407.77 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

ACPL-072L-000E OptoCoupler High-Speed Isolator

ACPL-072L-000E OptoIsolator for high-speed data transfer up to 25 Mbps, 3750 Vrms isolation, low power consumption.

The ACPL-072L-000E OptoCoupler High-Speed Isolator is designed for high-speed digital signal isolation. It features a GaAsP LED light source and an integrated photodetector IC. This device ensures robust electrical separation with an isolation voltage of 3750 Vrms and supports data rates up to 25 Mbps. Its compact SO-8 package is suitable for various PCB applications in industrial automation and power electronics.

With low power consumption and a push-pull output, the ACPL-072L-000E OptoCoupler High-Speed Isolator enhances signal integrity and switching performance. Its operating temperature range of -40°C to +105°C makes it versatile for different environments. Ideal for microcontroller interfaces and data communication, this optoisolator is a reliable choice for modern electronic designs.

Explore the benefits of using the ACPL-072L-000E OptoCoupler High-Speed Isolator in your projects to ensure high performance and efficiency. Its features cater to the needs of Indian customers seeking quality electronic components.

Discover the reliability of OptoCouplers & OptoIsolators at DNA. Explore the ACPL-072L-000E OptoCoupler High-Speed Isolator and see how it meets your isolation needs. Check other "OptoCouplers & OptoIsolators" that we have in stock.

If you're searching for specific electronic components in India, DNA can assist you. We can help source parts like Transistors, Microcontrollers, Nextion Displays, and more. If you cannot find what you need, contact us for support in retail or bulk orders. Contact Us

Features of ACPL-072L-000E OptoCoupler High-Speed Isolator

High Isolation Voltage
Push-Pull Output
Low Power Consumption
High Speed

Specification of ACPL-072L-000E OptoCoupler High-Speed Isolator

Isolation Voltage: 3750 Vrms
Data Rate: Up to 25 Mbps
Propagation Delay: Typical: 40 ns
Pulse Width Distortion: Maximum: 6 ns
Operating Voltage: 3.0V to 5.5V
Input Current: Maximum: 1.6 mA
Operating Temperature: -40°C to +105°C
Package Type: SO-8 (Surface Mount)

Applications of ACPL-072L-000E OptoCoupler High-Speed Isolator

Industrial Automation
Data Communication
Power Electronics
Microcontroller Interfaces
Switching Power Supplies

Package Includes

1 X ACPL-072L-000E OptoCoupler High-Speed Isolator

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
