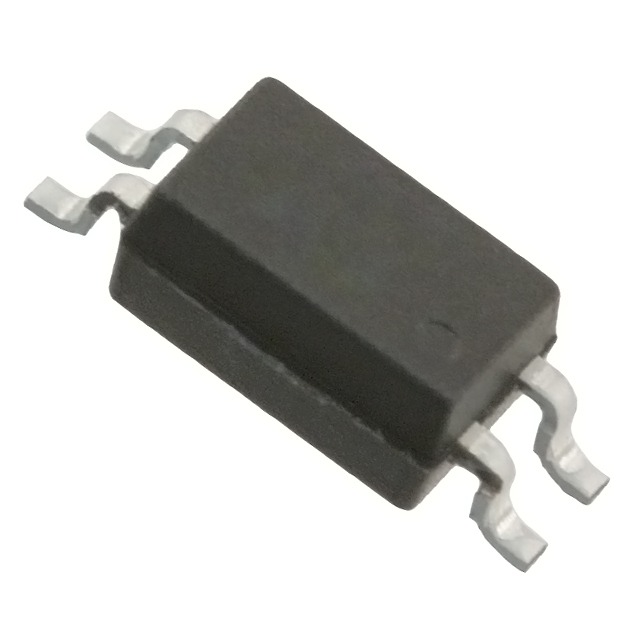

Product Images are shown for illustrative purposes only and may differ from actual product.

ACPL-214-500E Phototransistor Optocoupler SMD IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 9779 | DAI523

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 73.66 (inc GST)
    Rs.62.42 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ACPL-214-500E Phototransistor Optocoupler SMD IC

ACPL-214-500E Optocoupler for signal isolation with high CTR and 5000 Vrms isolation voltage.

The ACPL-214-500E Phototransistor Optocoupler SMD IC offers robust electrical isolation for sensitive circuits. This component integrates a infrared LED with a silicon phototransistor in a compact DIP-4 package. With a high current transfer ratio (CTR) ranging from 50% to 600%, it ensures reliable signal integrity while protecting against high-voltage transients. The ACPL-214-500E is ideal for applications requiring low input current and wide operating temperatures from –55°C to +100°C.
Designed for versatility, the ACPL-214-500E Phototransistor Optocoupler SMD IC is suitable for power supply feedback circuits, AC mains detection, and industrial control systems. Its high isolation voltage of 5000 Vrms ensures safe operation, making it a preferred choice for switching power supplies. This optocoupler meets RoHS compliance, catering to modern electronic design requirements.
For Indian customers, the ACPL-214-500E provides an essential solution for enhancing circuit reliability. Explore our inventory of Optocouplers & OptoIsolators to find additional components that meet your needs.
Explore the versatility of OptoCouplers & OptoIsolators at DNA. We offer premium products from leading manufacturers. Check other OptoCouplers & OptoIsolators that we have in stock.
If you are looking for specific electronic components, reach out to us at DNA. We can help you find parts like Development Modules, Sensors, and Microcontrollers. We also support bulk orders and can import items if needed. Contact Us.

Features of ACPL-214-500E Phototransistor Optocoupler SMD IC

  • High current transfer ratio (CTR) range: 50% to 600%
  • High isolation voltage: 5000 Vrms
  • Compact 4-pin DIP package
  • Low input current requirements
  • Wide operating temperature range: –55°C to +100°C
  • RoHS-compliant versions available

Specification of ACPL-214-500E Phototransistor Optocoupler SMD IC

  • Input type: Infrared LED
  • Mounting Style: SMD/SMT
  • Output type: Phototransistor
  • Isolation voltage: 5000 Vrms
  • Forward current: 60 mA

Applications of ACPL-214-500E Phototransistor Optocoupler SMD IC

  • Power supply feedback circuits
  • AC mains detection
  • Switching power supplies
  • Industrial control systems

Package Includes

  • 1 X ACPL-214-500E Phototransistor Optocoupler SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
