Product Images are shown for illustrative purposes only and may differ from actual product.

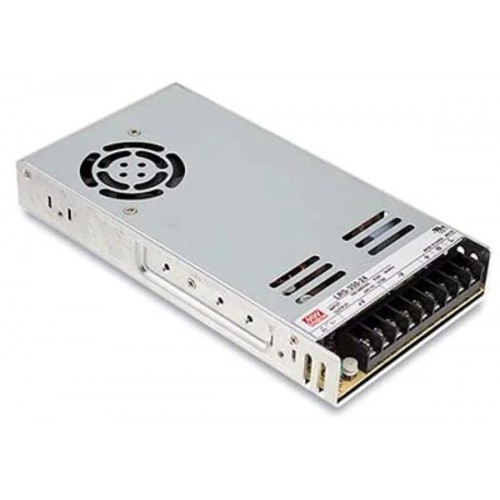

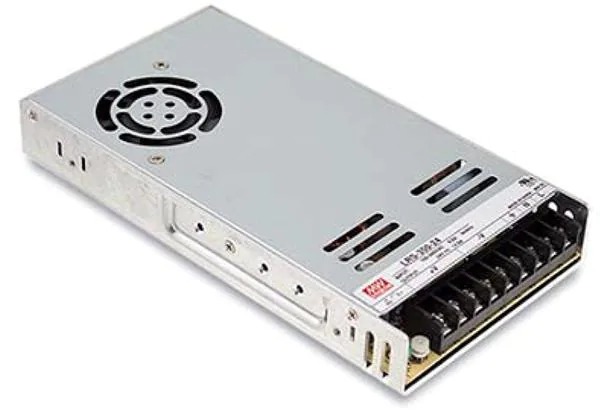

MEANWELL LRS-350-48 AC/DC CONVERTER

Write a review | 0 reviews

Stock: Out Of Stock

SKU: 7168 | DAE295

Rs. 2,565.32 (inc GST)
Rs.2,174.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MEANWELL LRS-350-48 AC/DC CONVERTER

MEANWELL LRS-350-48 AC/DC CONVERTER

The Meanwell LRS-350-48 is a LRS-350 series 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.It serves as a high price-to-performance power supply solution for various industrial applications. It includes short circuit, overload, over voltage, over temperature. Application includes industrial automation machinery, industrial control system.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MEANWELL LRS-350-48

Input voltage range from 90 to 132VAC, 180 to 264VAC by switch, output DC voltage is 48V
Output rated current is 7.3A, output rated power is 350.4W, typical efficiency is 89%
AC input range selectable by switch, withstand 300VAC surge input for 5 second
1U low profile, withstand 5G vibration test, LED indicator for power on
Forced air cooling by built-in DC fan, built-in cooling fan ON-OFF control

Specifications of MEANWELL LRS-350-48

MEAN WELL MODEL :- LRS-350-48
FREQUENCY RANGE :- 47 ~ 63Hz
PROTECTION OVER LOAD :- 110 140% rated output power
DIMENSION :- 215 X 115 X 30mm (L X W X H)
Weight :- 750 Grams
RANGE :- 43.2 - 52.8V
RATED POWER :- 350.4W VOLTAGE

Package Includes

1 x MEANWELL LRS-350-48 AC/DC CONVERTER

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
