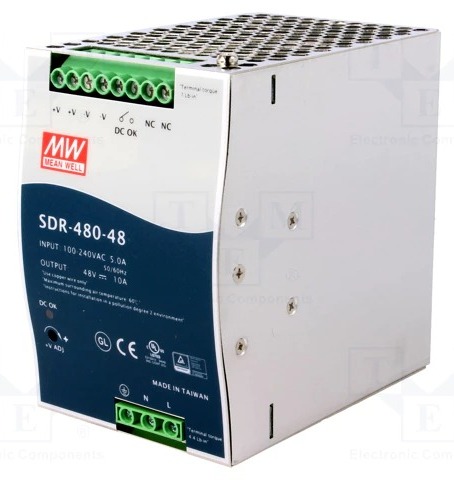

Meanwell SDR-480-48 480 W DIN-Rail AC/DC Power Supply

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-16

  • Brand: Meanwell
  • SKU: 7477 | DAF916

Availability: NotInStock priceValidUntil: 2026-12-16

  • Rs. 15,263.30 (inc GST)
    Rs.12,935.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Meanwell SDR-480-48 480 W DIN-Rail AC/DC Power Supply

Meanwell SDR-480-48 480 W DIN-rail AC/DC power supply with 48 V DC, 10 A output, active PFC and 150% peak load capability for 3 seconds.

Meanwell SDR-480-48 is a 480 W single-output AC/DC power supply that provides regulated 48 V DC from AC or DC input. Its DIN-rail power supply design suits control equipment where a steady supply and panel mounting matter.
Active power factor correction and a built-in constant-current limiting circuit support power delivery as loads change. Short-circuit, overload, overvoltage and overtemperature protection help guard the supply and connected system. Free-air convection removes the need for a fan, while a DC OK relay contact provides a status signal.
Use this 48 V industrial power supply in industrial control equipment that needs a single 48 V rail. Its AC/DC input range supports different supply sources, and DIN-rail mounting keeps installation straightforward.
DNA, an Indian retailer, stocks Meanwell power supplies for industrial and control needs. Explore Meanwell SMPS options for your projects. Check other Meanwell SMPS that we have in stock
If you cannot find a part, contact DNA for help. We support imports and retail or bulk orders across India. Ask about related Crystal, LCD, SMPS, Capacitor, Analog IC and Hongfa Relay products. Contact Us

Features of Meanwell SDR-480-48 480 W DIN-Rail AC/DC Power Supply

  • Built-in active power factor correction
  • Constant-current limiting circuit
  • Protection against short circuit, overload, overvoltage and overtemperature
  • Free-air convection cooling
  • DC OK relay contact for status monitoring
  • Fits TS-35/7.5 or TS-35/15 DIN rails

Specifications of Meanwell SDR-480-48 480 W DIN-Rail AC/DC Power Supply

  • Rated output voltage: 48 V DC
  • Rated output current: 10 A
  • Rated output power: 480 W
  • Input voltage range: 90–264 V AC or 127–370 V DC (derating may be needed at low input voltage)
  • Peak output power: 720 W for up to 3 seconds (average output power must not exceed 480 W)
  • Output voltage adjustment range: 48–55 V
  • Operating temperature: −25 to +70 °C (use the product derating curve to determine operating limits)
  • Dimensions (W × H × D): 85.5 × 125.2 × 128.5 mm

Applications of Meanwell SDR-480-48 480 W DIN-Rail AC/DC Power Supply

  • Industrial control equipment

Related Links for Meanwell SDR-480-48 480 W DIN-Rail AC/DC Power Supply

Package Includes

  • 1 X Meanwell SDR-480-48 480 W DIN-Rail AC/DC Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
