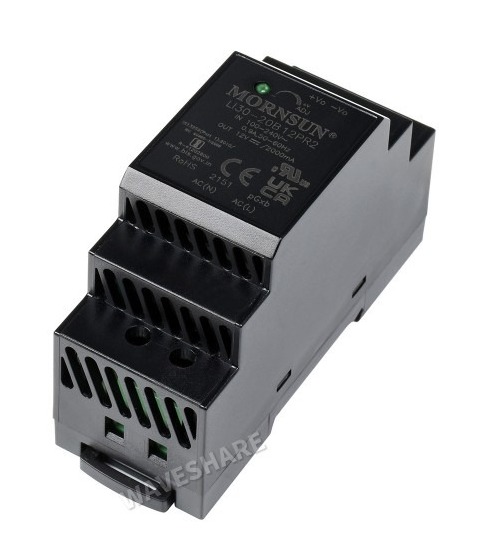

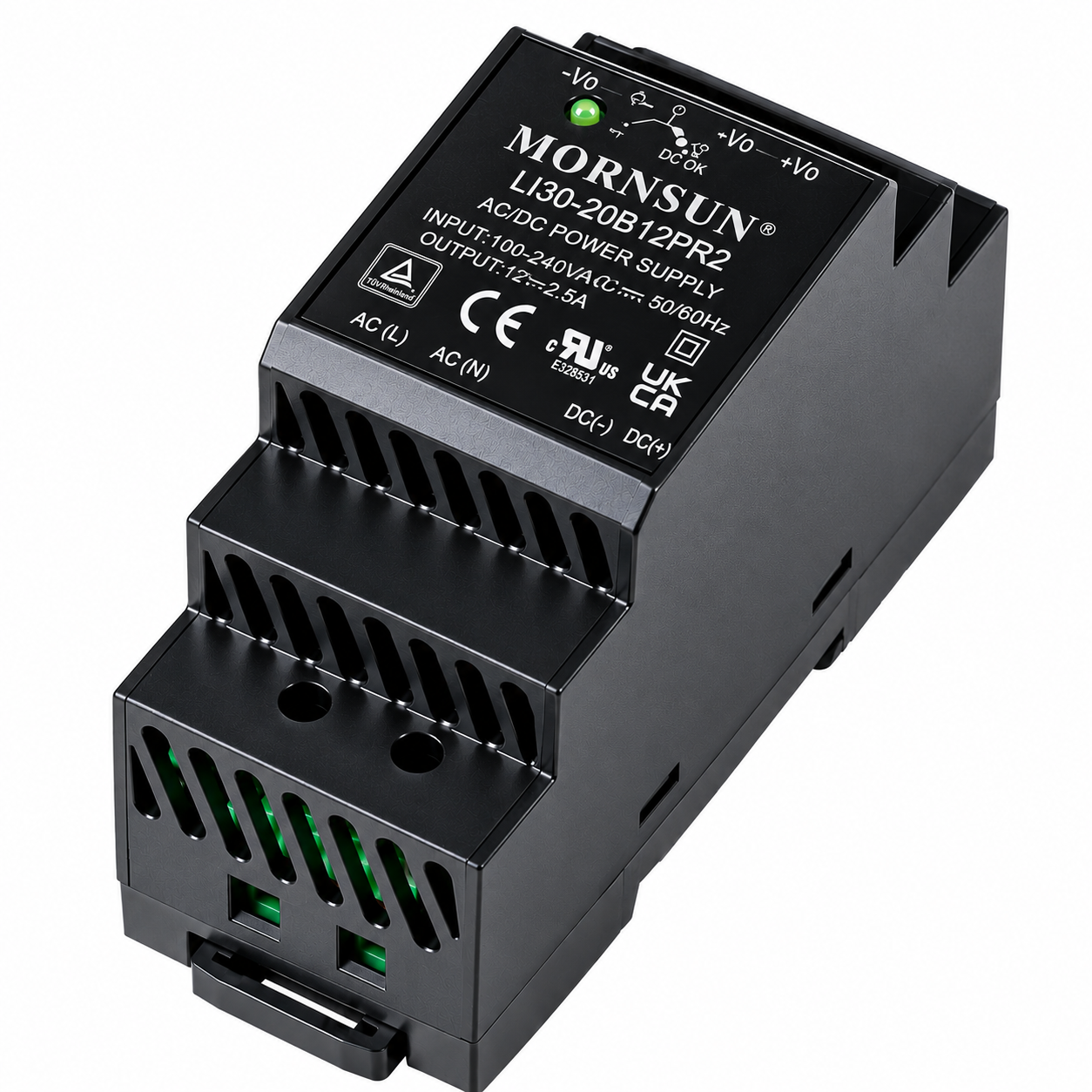

Mornsun LI30-20B12PR2 12V 2A DIN-Rail AC/DC Power Supply

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-19

  • Brand: Mornsun
  • SKU: 7510 | DAG180

Availability: NotInStock priceValidUntil: 2026-12-19

  • Rs. 1,327.50 (inc GST)
    Rs.1,125.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun LI30-20B12PR2 12V 2A DIN-Rail AC/DC Power Supply

Mornsun LI30-20B12PR2 AC/DC DIN-rail power supply with 12 V DC, 2 A output and 24 W rated power.

The Mornsun LI30-20B12PR2 is an AC/DC DIN-rail power supply for equipment that needs a 12 V DC supply. It delivers up to 2 A, with a rated output of 24 W, and accepts AC or DC input across a wide voltage range.
Its DIN-rail mounting helps keep control cabinets organised. Short-circuit, over-current and over-voltage protection help guard connected equipment. The short-circuit and over-current protection can recover on their own, while free-air convection cools the unit without a fan.
Use this 12 V power supply in industrial control equipment and machinery. Its combined input options and protective functions suit control systems that need a compact power source with a defined DC output.
Explore Mornsun power supplies at DNA, a retailer for electronics and components. Browse our Mornsun SMPS range to find a unit that fits your project or equipment. Check other Mornsun SMPS that we have in stock
If you cannot find a part, contact DNA for help. We support Indian electronics buyers with import assistance and both retail and bulk orders. Ask us about Resistors, Capacitors, Development boards, Sensor Modules, DC to DC Converter Modules or Crystals. Contact Us

Features of Mornsun LI30-20B12PR2 12V 2A DIN-Rail AC/DC Power Supply

  • Accepts AC or DC input
  • Mounts on standard TS35 DIN rails
  • Short-circuit protection with self-recovery
  • Self-recovering over-current protection
  • Output over-voltage protection
  • Free-air convection cooling

Specifications of Mornsun LI30-20B12PR2 12V 2A DIN-Rail AC/DC Power Supply

  • Input voltage: 85–264 VAC or 120–370 VDC
  • Output voltage: 12 V DC nominal, adjustable from 10.8–13.8 V
  • Output current: 2 A rated
  • Output power: 24 W
  • Efficiency: 88% typical at 230 VAC
  • Output ripple and noise: 120 mV maximum peak-to-peak, at 20 MHz bandwidth
  • Operating temperature: -40°C to +70°C, with power derating at low and high temperatures
  • Input-to-output isolation: 4000 VAC for 1 minute

Applications of Mornsun LI30-20B12PR2 12V 2A DIN-Rail AC/DC Power Supply

  • Industrial control equipment and machinery

Related Links for Mornsun LI30-20B12PR2 12V 2A DIN-Rail AC/DC Power Supply

Package Includes

  • 1 X Mornsun LI30-20B12PR2 12V 2A DIN-Rail AC/DC Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
