Product Images are shown for illustrative purposes only and may differ from actual product.

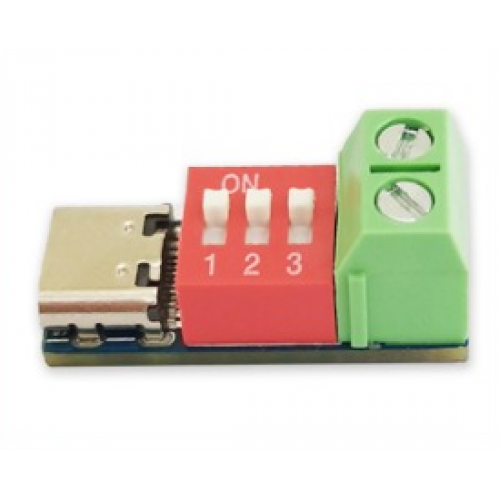

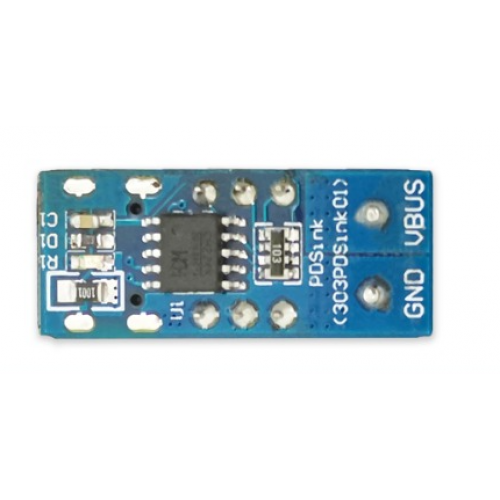

5~20V QC PD Fast Charging Test Board Module

Write a review | 0 reviews

Stock: 10

SKU: 9791 | DAI564

Rs. 95.26 (inc GST)
Rs.80.73 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

5~20V QC PD Fast Charging Test Board Module

5~20V QC PD Fast Charging Test Board Module

The 5~20V QC PD Fast Charging Test Board Module is a compact and efficient module designed to test fast charging protocols including Quick Charge (QC) 2.0/3.0 and USB Power Delivery (PD). It is capable of triggering various voltage levels from 5V to 20V depending on the charger specification, making it ideal for validating and debugging USB fast chargers, power banks, and USB-C adapters.

DNA Solutions, Nashik offers a wide range of test tools and power modules for electronics developers and engineers. Explore our complete collection of Charging Test Modules.

If you are in Nashik, you can buy this electronic component at our local shop at New CBS, Nashik or place an order online for delivery anywhere in India.

Features of 5~20V QC PD Fast Charging Test Board Module

Supports QC 2.0/3.0 and PD 2.0/3.0 protocols
Can trigger voltage output of 5V, 9V, 12V, 15V, and 20V
Type-C and USB-A male connectors for universal compatibility
Onboard indicator LEDs for selected voltage
Compact size and easy-to-use interface

Specifications of 5~20V QC PD Fast Charging Test Board Module

Input Interface: USB-A & USB Type-C
Output Voltage: 5V, 9V, 12V, 15V, 20V (depending on charger)
Protocol Support: QC 2.0/3.0, PD 2.0/3.0
Operating Voltage Range: 5V to 20V
Dimensions: Compact and portable

Applications of 5~20V QC PD Fast Charging Test Board Module

Testing fast charging protocols in USB chargers
Power bank validation and debugging
PD power supply output testing
Electronics bench development and QA

Package Includes

1 x 5~20V QC PD Fast Charging Test Board Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
