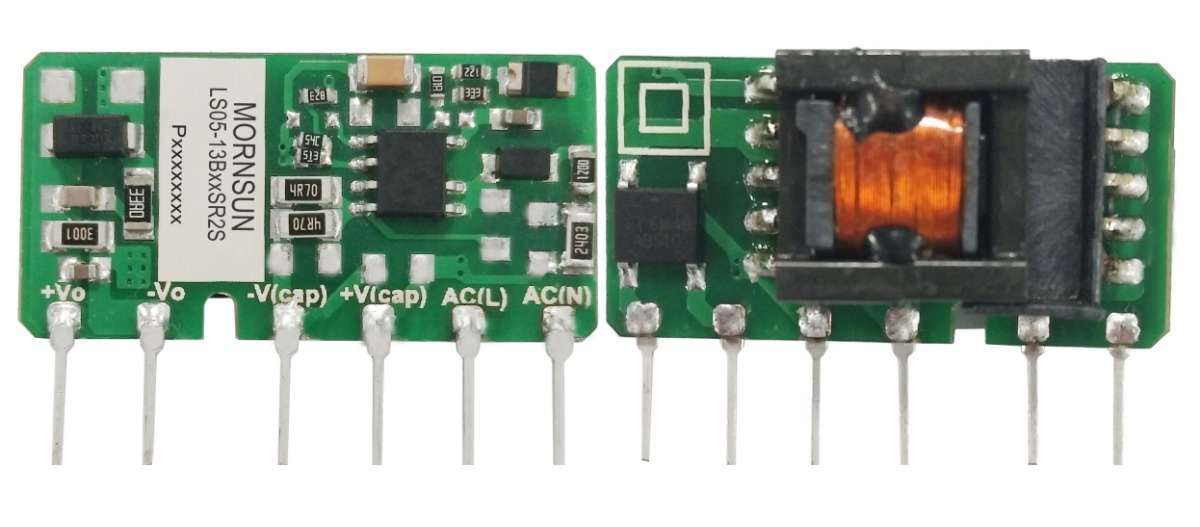

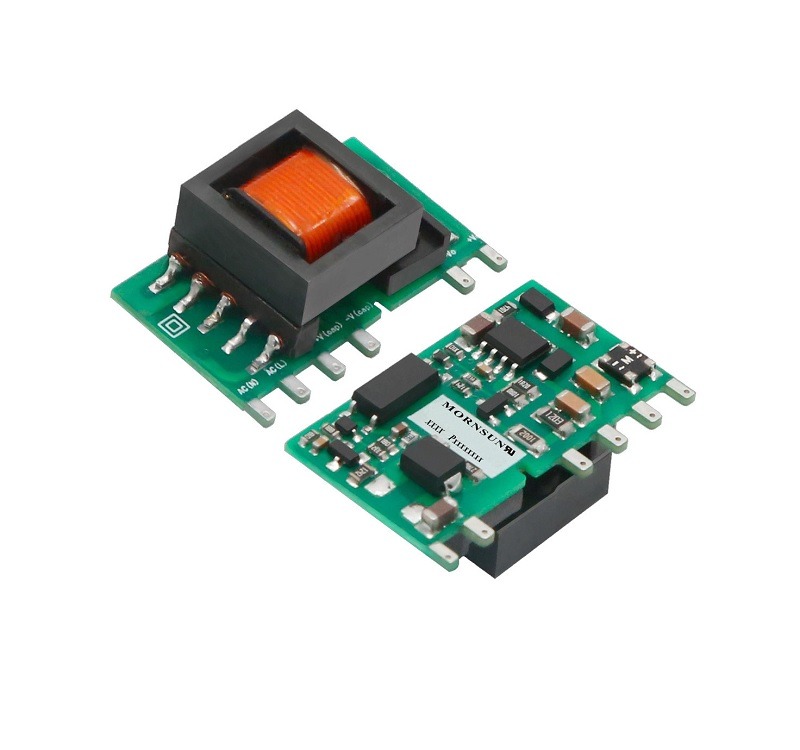

Mornsun LS05-13B12SR2S 5W AC/DC Converter Module

Name: Mornsun LS05-13B12SR2S 5W AC/DC Converter Module
Brand: Mornsun
SKU: DAE456
Price: 330.4 INR
Availability: OutOfStock
Rating: 4 (1 reviews)

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-24
Brand: Mornsun
SKU: 7518 | DAE456

Rs. 330.40 (inc GST)
Rs.280.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Mornsun LS05-13B12SR2S 5W AC/DC Converter Module

Mornsun LS05-13B12SR2S AC/DC converter module with 12 V, 420 mA output, 5 W power and AC or DC input.

The Mornsun LS05-13B12SR2S is a 5 W AC/DC converter module that converts AC or DC input to a nominal 12 V DC output. It supplies up to 420 mA for low-power circuits in equipment that needs a compact power stage.

The module accepts AC or DC through the same input terminals. Its Class II reinforced insulation helps separate the input and output circuits. Built-in short-circuit and over-current protection can help limit faults, with self-recovery after the fault clears.

Use this 12 V power module in industrial control, instrumentation, electric power equipment and smart home applications where a single module can provide the required AC/DC conversion.

DNA stocks Mornsun power modules for electronics design, repair and production needs. Explore our Mornsun SMPS range to find parts for your next build. Check other Mornsun SMPS that we have in stock

Indian electronics buyers can contact DNA if they cannot find a part. We support imports and retail or bulk orders. Ask us about related Capacitor, MOSFET, IGBT, Power Supply, Inductor or Crystal parts. Contact Us

Features of Mornsun LS05-13B12SR2S 5W AC/DC Converter Module

Accepts AC or DC through the same input terminals
Short-circuit protection with hiccup operation and self-recovery
Over-current protection with self-recovery
Class II reinforced insulation
Open-frame design with vertical mounting

Specifications of Mornsun LS05-13B12SR2S 5W AC/DC Converter Module

Rated output voltage: 12 V DC
Rated output current: 420 mA
Output power: 5 W
Input voltage: 85–305 VAC or 70–430 VDC
Input frequency: 47–63 Hz for AC input
Input-to-output isolation: 3000 VAC electric strength test for 1 minute
Ripple and noise: 80 mV typical, 150 mV maximum peak-to-peak at 20 MHz bandwidth
Dimensions: 35.00 × 18.00 × 11.00 mm

Applications of Mornsun LS05-13B12SR2S 5W AC/DC Converter Module

Industrial control
Electric power equipment
Instrumentation
Smart home applications

Package Includes

1 X Mornsun LS05-13B12SR2S 5W AC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
