QFP48 TQFP48 LQFP48 PQFP48 Programming ZIP Adapter Socket module
- Stock: 2 InStock
- SKU: 7551 | DAF671
-
Rs.
6,296.60 (inc GST)
Rs.5,336.10 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |

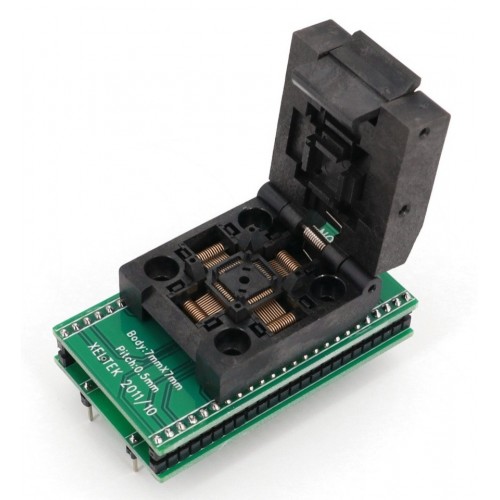

QFP48 TQFP48 LQFP48 PQFP48 Programming ZIP Adapter Socket module
QFP48 TQFP48 LQFP48 PQFP48 Programming ZIP Adapter Socket module
The Programming ZIP Socket Module for QFP48, TQFP48, LQFP48, and PQFP48 ICs is designed to facilitate the programming and testing of 48-pin QFP-type ICs. The socket utilizes a ZIP (Zero Insertion Force) mechanism that allows for easy insertion and removal of the IC. This is particularly useful in development environments, prototyping, or situations where multiple programming cycles are needed. This adapter connects the pins of a TQFP48 device to a 48 pin DIP equivalent. it accepts a TQFP48 device and plugs into a DIP socket. Having a problem programming TQFP48 SMD IC's? Well use this TQFP 48, LQFP 48, and QFP 48 to DIP 48 adapter socket for easy programming. This is basically a breakout connector for SMD TQFP48 IC.
DNA solutions, Nashik has various types of Adapter's. Check out our complete collection of Adapter's.
- Used to rapid programming of SMD ICs during production
- Useful for bulk programming and testing before soldering
- Highly useful during production, testing and boot loading
- Product use: Programming socket, test socket, programming and testing of QFP48 IC chips
- Applicable packages: QFP48, PQFP48, QFP48, pin pitch 0.5 mm
- Features: All pins are broken out in the order of the chip
- Chip size: 7x7 mm (with pins 9x9 mm)
Specifications of QFP48 TQFP48 LQFP48 PQFP48 Programming ZIP Adapter Socket module
- Supported IC Packages: QFP48, TQFP48, LQFP48, PQFP48 (48-pin quad flat packages)
- Pin Pitch: 0.5mm
- Socket Type: ZIP (Zero Insertion Force)
- Insertion Life Cycle: Typically rated for over 10,000 insertion/removal cycles
- Operating Temperature Range: -40°C to +85°C
- Material: High-grade plastic body with metal contacts (copper alloy with gold or tin plating for improved conductivity)
- Mounting Type: Socket can be mounted on a programming tool, testing equipment, or used on a PCB for prototyping
Package Includes
- 1 x QFP48 TQFP48 LQFP48 PQFP48 Programming ZIP Adapter Socket module
