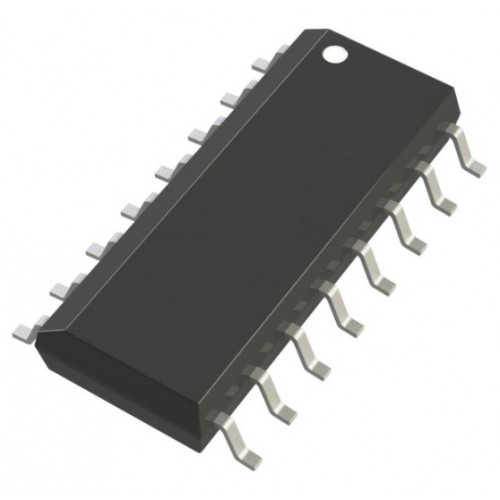

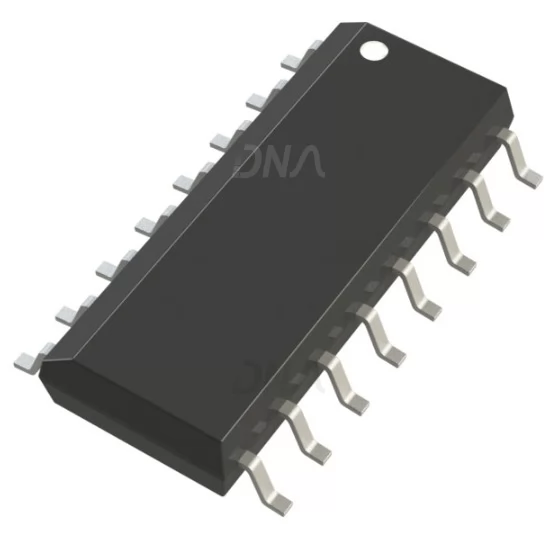

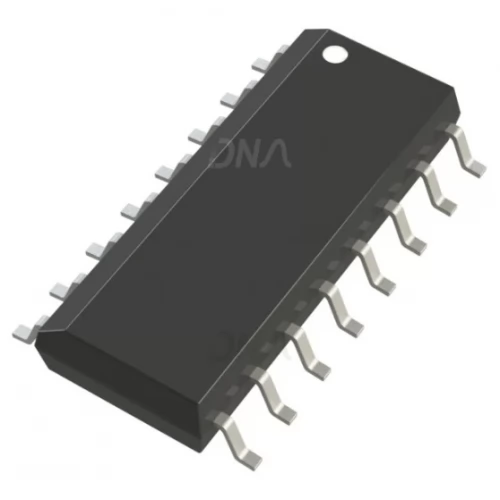

Product Images are shown for illustrative purposes only and may differ from actual product.

ADG441BRZ IC SWITCH SPST NCX4 70OHM 16SOIC

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-28
SKU: 7950 | DAH672

Rs. 518.33 (inc GST)
Rs.439.26 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

ADG441BRZ SPST Switch IC

ADG441BRZ IC Switch SPST NCX4 with 70Ω on-resistance, fast switching times, and low leakage current for precise signal routing.

The ADG441BRZ SPST Switch IC is a monolithic CMOS device featuring four independently selectable Single Pole, Single Throw (SPST) switches. It operates with a typical on-resistance of 70Ω, ensuring minimal signal loss and distortion. This IC is ideal for precision signal switching in various applications, including instrumentation and communications. The ADG441BRZ supports a wide supply voltage range, operating with dual supplies (±15 V) or a single supply (3 V to 16.5 V).

Designed for high accuracy, the ADG441BRZ SPST Switch IC features low leakage currents and fast switching times of 100 ns (turn-on) and 80 ns (turn-off). This makes it suitable for data acquisition systems and industrial automation. Its control logic compatibility with both TTL and CMOS adds versatility for system integration.

With its compact 16-SOIC package, the ADG441BRZ is perfect for space-constrained applications. Explore the capabilities of this switch IC and enhance your designs today.

At DNA, we offer a range of high-quality MISC ANALOG IC's. The ADG441BRZ from a trusted Manufacturer is essential for precision applications. Discover our full selection of MISC ANALOG IC's and enhance your projects. Check other MISC ANALOG IC's that we have in stock.

If you are searching for specific electronic components in India, reach out to us at DNA. We can help you find the parts you need, including Microcontrollers, DC to DC Converter ICs, and more. We also support import requests and offer retail and bulk options. Contact Us.

Features of ADG441BRZ SPST Switch IC

Low On-Resistance of 70 Ω
Wide Supply Voltage Range (±15 V or 3 V to 16.5 V)
Low Leakage Current (< 1 nA)
Fast Switching Times (100 ns on, 80 ns off)
Control Logic Compatibility (TTL and CMOS)

Specification of ADG441BRZ SPST Switch IC

Switch Configuration: 4 x SPST
On-Resistance: 70 Ω (typical)
Switching Time: 100 ns (turn-on), 80 ns (turn-off)
Leakage Current: < 1 nA (typical)
Package: 16-SOIC
Power Dissipation: 1 μW (typical at 5 V supply)

Applications of ADG441BRZ SPST Switch IC

Instrumentation
Communications
Data Acquisition Systems
Automotive
Industrial Automation

Package Includes

1 X ADG441BRZ IC SWITCH SPST NCX4 70OHM 16SOIC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
