Product Images are shown for illustrative purposes only and may differ from actual product.

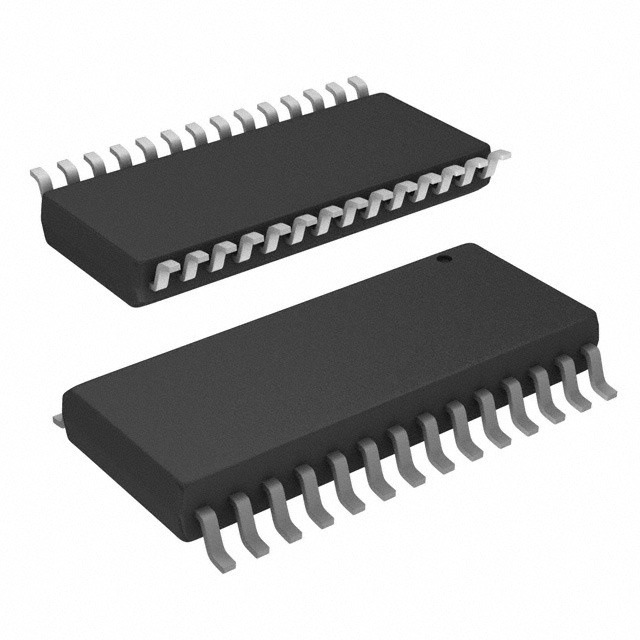

ADS774JU 12 Bit Analog to Digital Converter IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-12

  • SKU: 5080 | DAG828

Availability: NotInStock priceValidUntil: 2026-03-12

  • Rs. 1,263.78 (inc GST)
    Rs.1,071.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ADS774JU 12 Bit Analog to Digital Converter IC

ADS774JU 12 Bit Analog to Digital Converter IC

The ADS774JU is a 12-bit Analog-to-Digital Converter (ADC) IC designed by Texas Instruments. This ADC is a successive approximation type with features that make it suitable for high-precision data conversion in analog signal processing applications. The ADS774JU is optimized for low-power operation, high-speed conversions, and compact designs. The ADS774 requires +5V, with –15V optional. No +15V supply is required. Available packages include 0.3" or 0.6" wide 28-pin plastic DIP and 28-pin SOICs.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ADS774JU 12 Bit Analog to Digital Converter IC

  • REPLACES ADC574, ADC674 AND ADC774 FOR NEW DESIGNS
  • COMPLETE SAMPLING A/D WITH REFERENCE, CLOCK AND MICROPROCESSOR INTERFACE
  • FAST ACQUISITION AND CONVERSION: 8.5µs max OVER TEMPERATURE
  • ELIMINATES EXTERNAL SAMPLE/HOLD IN MOST APPLICATIONS
  • GUARANTEED AC AND DC PERFORMANCE
  • SINGLE +5V SUPPLY OPERATION
  • LOW POWER: 120mW max
  • PACKAGE OPTIONS: 0.6" and 0.3" DIPs, SOIC

Specifications of ADS774JU 12 Bit Analog to Digital Converter IC

  • Resolution: 12 bits.
  • Input Range: 0V to +5V (single-ended).
  • Conversion Time: 8 µs typical.
  • Sample Rate: Up to 125 k SPS (kilo samples per second).
  • Power Supply: Single supply, +5V.
  • Power Dissipation: 50 m W (typical).

  • Input Impedance: 10 MΩ minimum.

Package Includes

  • 1 x ADS774JU 12 Bit Analog to Digital Converter IC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
