Allegro MicroSystems ACS720KLATR-65AB-T Isolated Hall-Effect Current Sensor

Allegro MicroSystems ACS720KLATR-65AB-T Isolated Hall-Effect Current Sensor

ACS720KLATR-65AB-T bidirectional isolated Hall-effect current sensor with a ±65 A optimized range, 20.5 mV/A typical sensitivity and fast and slow fault outputs.

The Allegro MicroSystems ACS720KLATR-65AB-T is a bidirectional current sensor for AC and DC measurement. Its galvanic isolation separates the sensed current path from the output circuit, and its optimized accuracy range extends to ±65 A.

Differential sensing helps reject common-mode magnetic fields. The output voltage tracks current, while integrated temperature compensation supports stable measurement. Fast and slow open-drain fault outputs provide separate responses for short-circuit and overcurrent detection.

This isolated Hall-effect sensor suits motor control, power inverter stages and three-phase motor applications. Its sensing and fault functions in one device can support current monitoring and fault handling in these systems.

Find Allegro MicroSystems parts at DNA for current measurement and control designs. Browse our Current and Voltage Sensor range to compare suitable components for your project. Check other Current and Voltage Sensor that we have in stock

For Indian electronics buyers, DNA offers import support and retail or bulk support. If you cannot find a part, contact us to ask about sourcing it or related Capacitors, Analog ICs and Diodes. Contact Us

Features of Allegro MicroSystems ACS720KLATR-65AB-T Isolated Hall-Effect Current Sensor

• Differential sensing rejects common-mode magnetic fields
• Output voltage tracks AC or DC current
• Separate fast and slow fault outputs support short-circuit and overcurrent detection
• Open-drain, active-low fault signals simplify fault interfacing
• Integrated digital temperature compensation

Specifications of Allegro MicroSystems ACS720KLATR-65AB-T Isolated Hall-Effect Current Sensor

• Optimized accuracy current range: −65 A to +65 A
• Sensitivity: 20.5 mV/A typical
• Supply voltage: 4.5 V to 5.5 V, 5.0 V typical
• Total output error: ±0.6% typical, ±1.5% maximum (TA = 25°C to 125°C, IP = IPR(max))
• Operating ambient temperature: −40°C to 125°C

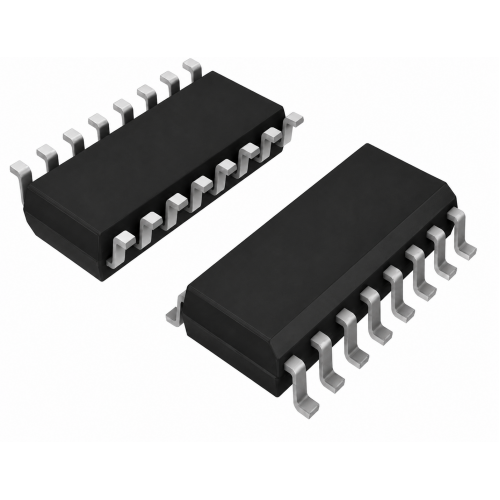

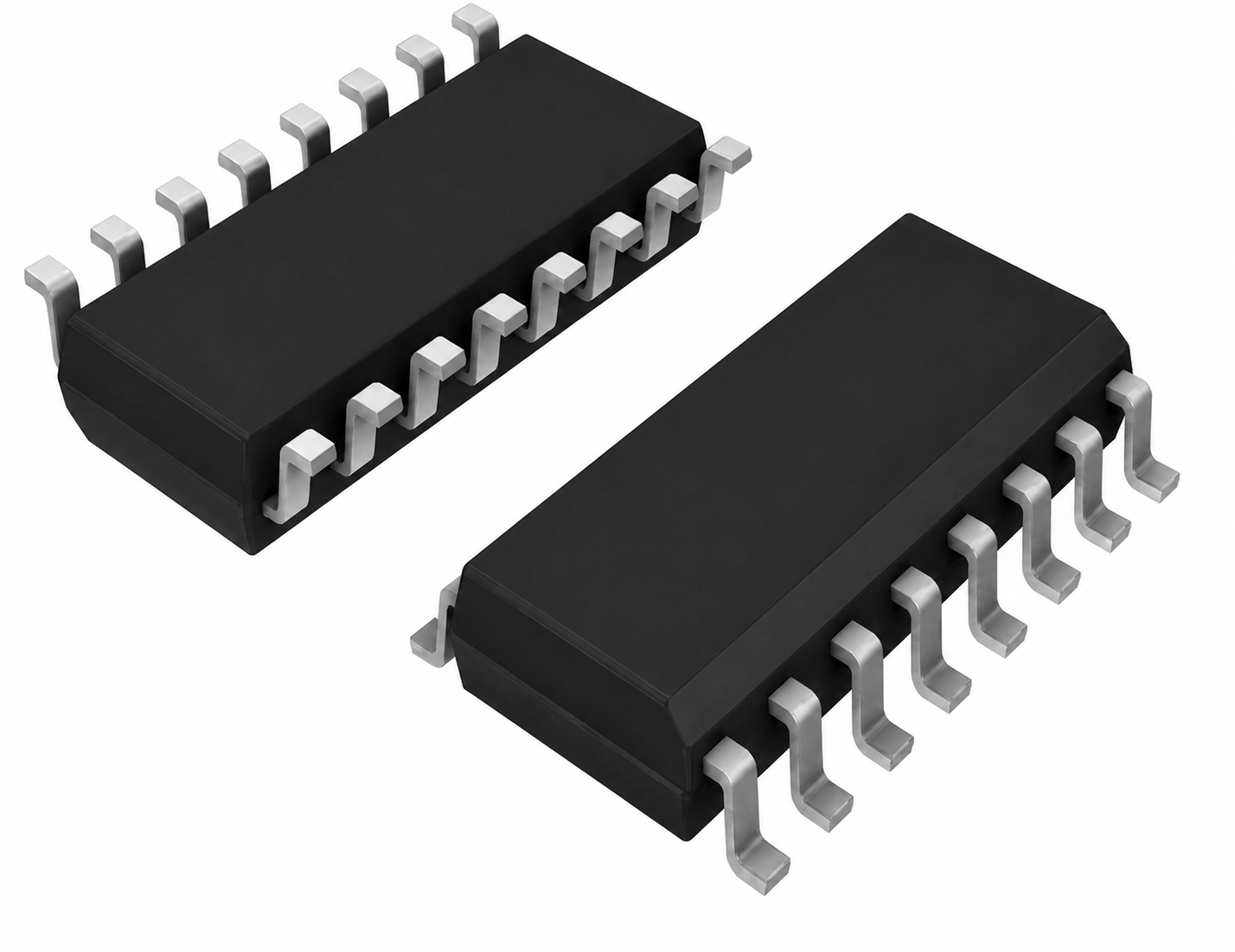

• Package: 16-pin SOICW wide-body surface mount
• Primary conductor resistance: 1.0 mΩ typical (TA = 25°C)
• Basic isolation working voltage: 616 VRMS (870 VPK or VDC)

Applications of Allegro MicroSystems ACS720KLATR-65AB-T Isolated Hall-Effect Current Sensor

• Motor control
• Power inverter stages
• Three-phase motor applications

Related Links for Allegro MicroSystems ACS720KLATR-65AB-T Isolated Hall-Effect Current Sensor

• Allegro MicroSystems ACS720KLATR-65AB-T Isolated Hall-Effect Current Sensor Datasheet

• Other Products from Current and Voltage Sensor Category

Package Includes

• 1 X Allegro MicroSystems ACS720KLATR-65AB-T Isolated Hall-Effect Current Sensor
