AM26C32 Quadruple Differential Line Receiver

AM26C32 RS-485 & RS-422 transceivers

AM26C32 is an improved replacement for AM26LS32 IC. The AM26C32 device is a quadruple differential line receiver for balanced or unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a busorganized system. Fail-safe design specifies that if the inputs are open, the outputs always are high. The AM26C32 devices are manufactured using a BiCMOS process, which is a combination of bipolar and CMOS transistors. This process provides the high voltage and current of bipolar with the low power of CMOS to reduce the power consumption to about one-fifth that of the standard AM26LS32, while maintaining AC and DC performance.

We have various types of Communication IC's. Check our complete collection of Communication IC.

Features of AM26C32 Differential Line Receiver

• Meets or Exceeds the Requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU Recommendation V.10 and V.11

• Low Power, ICC = 10 mA Typical

• ±7-V Common-Mode Range With ±200-mV Sensitivity

• Input Hysteresis: 60 mV Typical

• tpd = 17 ns Typical

• Operates From a Single 5-V Supply

• 3-State Outputs

• Input Fail-Safe Circuitry

• Improved Replacements for AM26LS32 Device

• Available in Q-Temp Automotive

Applications of AM26C32 Differential Line Receiver

• High-Reliability Automotive Applications
• Factory Automation
• ATM and Cash Counters
• Smart Grid
• AC and Servo Motor Drives

• AM26C32 Differential Line Driver Datasheet

Package Includes

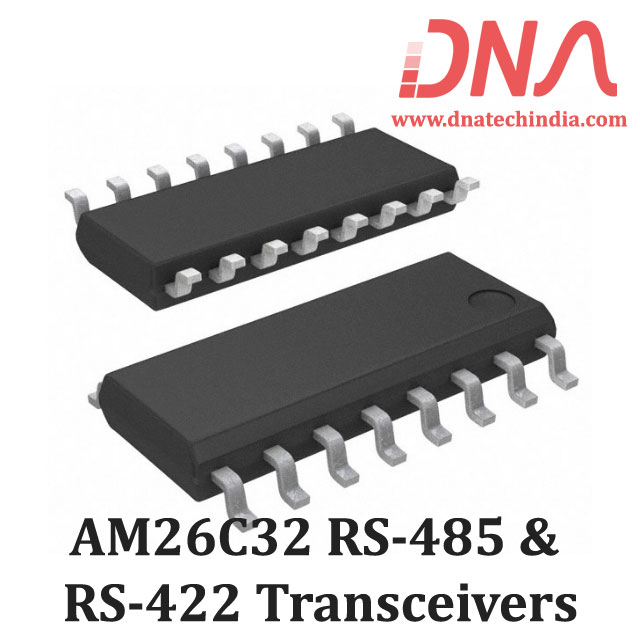

1 x AM26C32C Differential Line Receiver (SOIC)
